bloodmobile buses-mobile blood mobile vaccination buses

Bloodmobile, Blood Donor, & Vaccination Buses

featuring up to four blood draw/vaccination chairs, independent power supplies, driver isolation

Blood Donor Buses, aka Bloodmobiles, are potentially Life-Saving vehicles. They provide the ability to reach potential blood donors that brick & mortar centers cannot. The demand for blood donor vehicles has increased and to meet these demands, Best Bus Sales has rolled out two very special blood donor buses.

The E4-290 can be configured as a single patient chair bus with wheelchair lift, or three patient chairs without a wheelchair lift.

The M2‑450 is a four patient chair bus with front & rear doors. Both vehicles are built smart & tough with easy to clean surfaces, wi-fi, and independent generator(s). Also available is an M2 chassis with under-cabin storage.

E4-290 Single Chair Bloodmobile Features

Installed Features

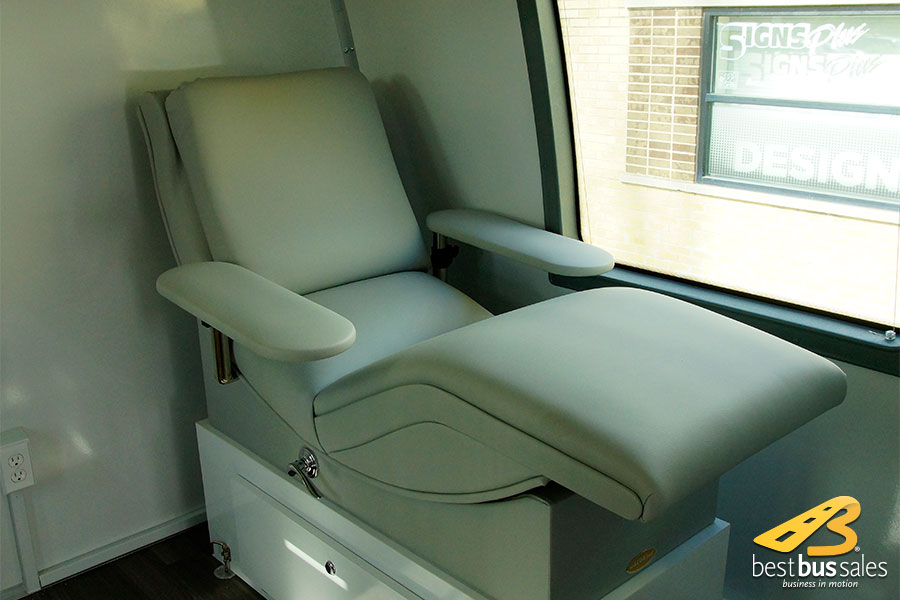

  • Dacor® blood draw & bloodmobile chair
  • Model E4-290 29' E-450 212" WB

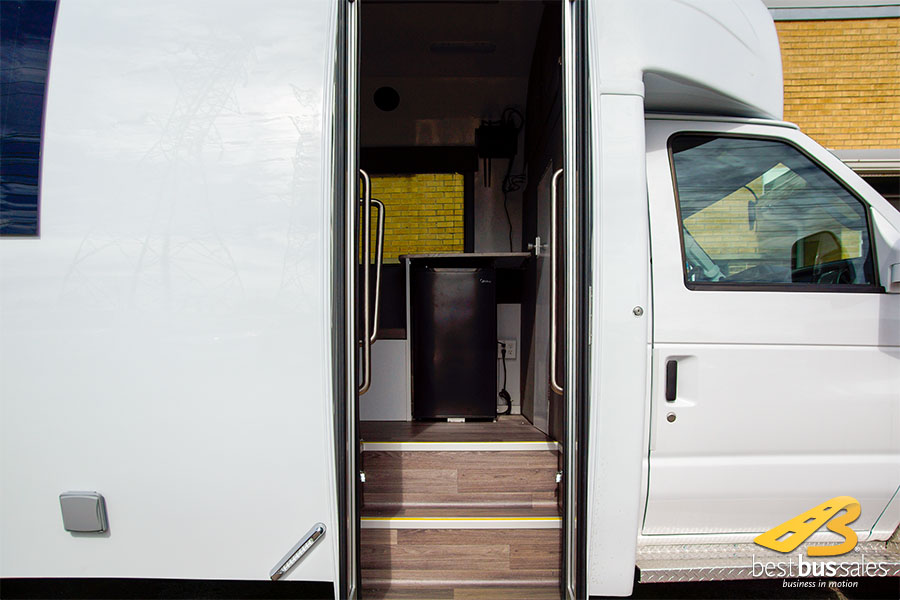

  • Electric Passenger Entry Door (standard)
  • Exterior Passenger Entrance Door Key
  • Dark Limo Tint on Entry Door
  • Stainless Steel Wheel Inserts
  • Aluminum Running Boards under Cab Doors (both sides)
  • Sumo Springs Front & Rear
Mirrors
  • Sail Mount Heated Power Mirrors
Windows
  • Frameless Solid Windows–KSIR® Standard Windows
  • Night Shades w/Valance (per window)
Lighting
  • Additional Stepwell Light (LED)
  • Rear Center Mount Brake Light (LED)
  • Mid-Ship Turn/Marker Lights (LED)
  • Exterior Light at Passenger Entry Door ( LED Flood Light)
  • LED ceiling lights
  • 110-volt outlets
  • 50-amp converter with shore power and ATS

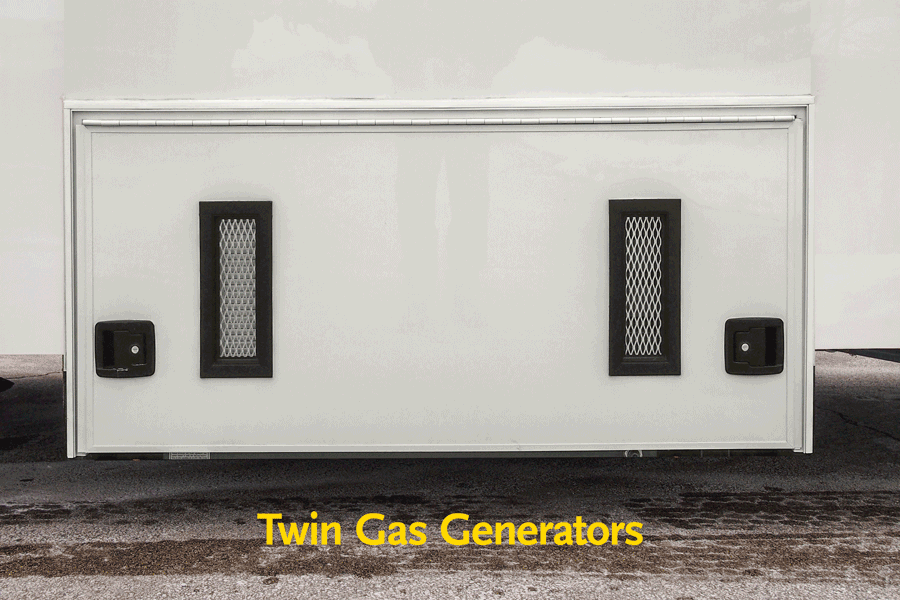

  • 7K gas generator on slide out
  • Storage cabinet above driver for electrical

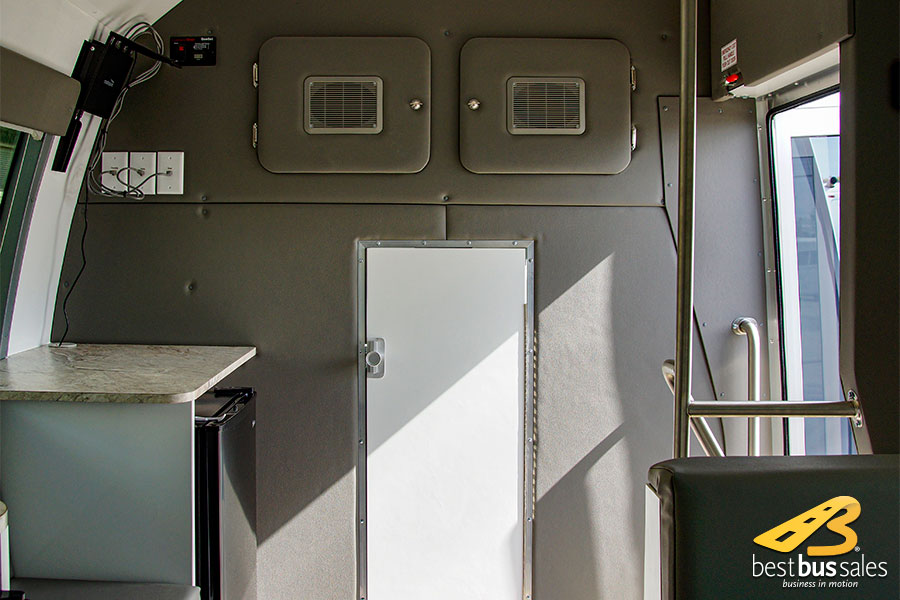

  • Center wall with accordion door
Installed Options

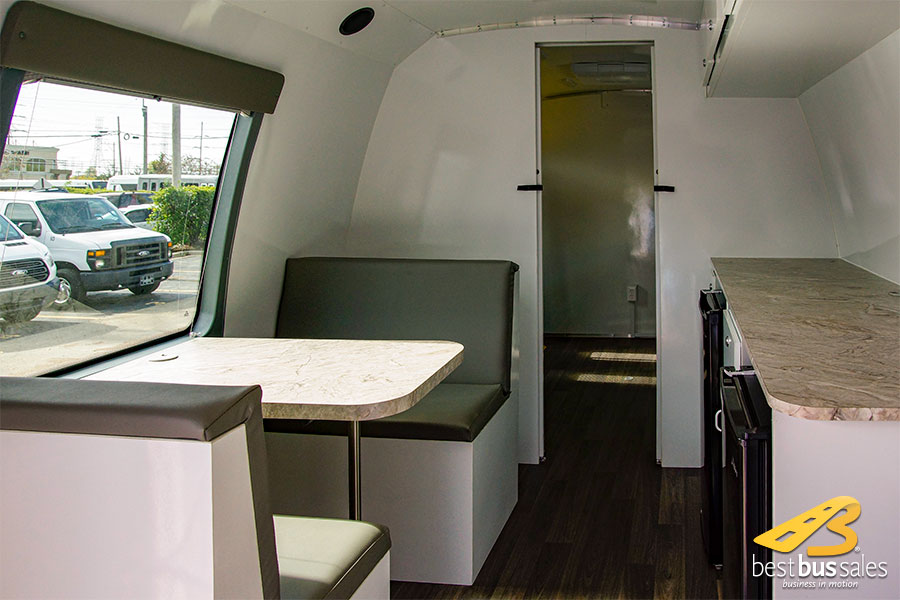

  • Double bench seating with table
  • 110-volt, 13,500 BTU Roof AC with heat
  • Tall cabinet with shelves
  • Wall behind driver with locking door
  • Refrigerator/printer cabinet
  • Exam table
  • Cat 5 cable and boxes
  • Rear desk with cabinets
  • Storage for folding chair
  • In-cabinet freezer with countertop and medical refrigerator

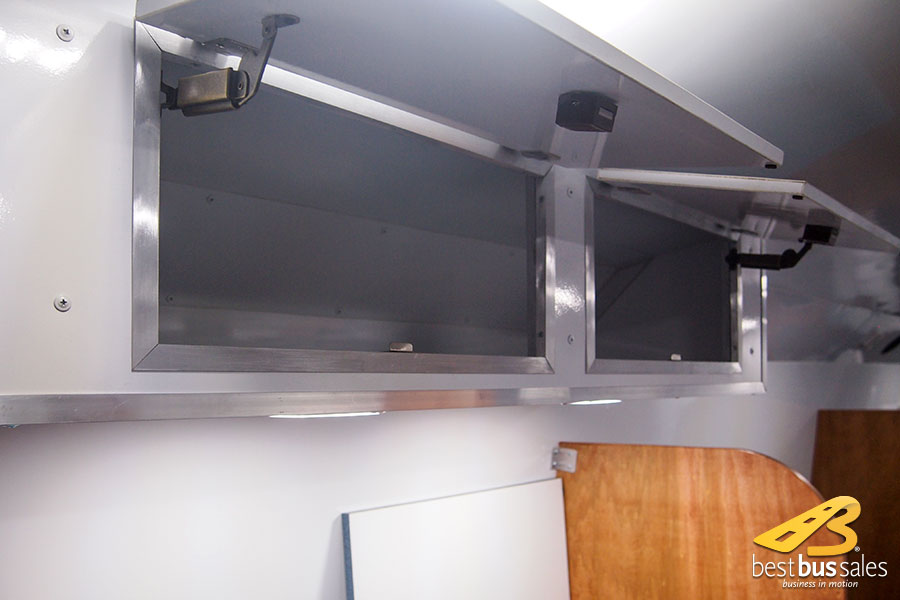

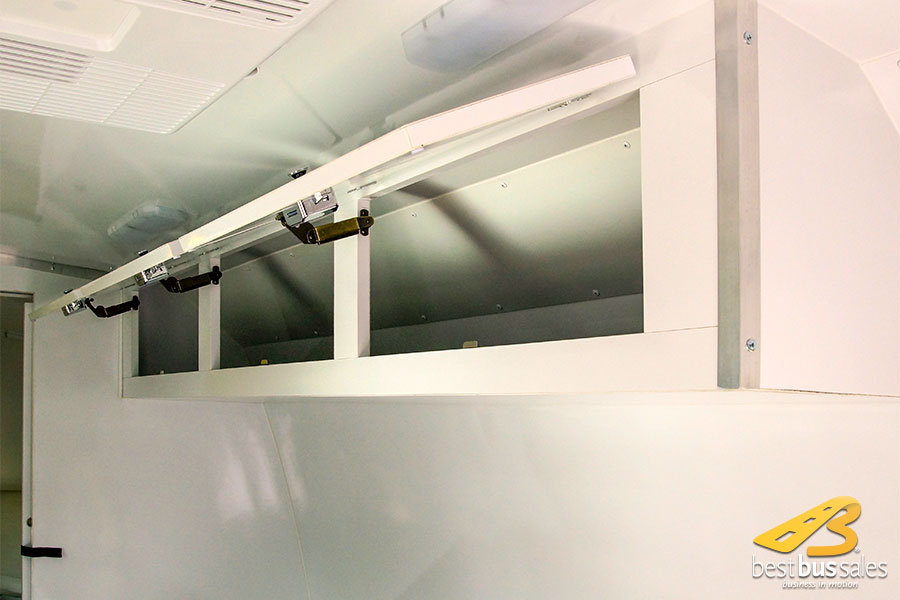

  • Locking overhead cabinets & side cabinets
  • Trash can behind entry door
  • Standard Rear Bumper with Anti-Ride
Electrical
  • Cradlepoint AER 2200 1200 mbps Edge Router
  • Ford OEM AM/FM/CD with four speakers
  • Backup Camera with Monitor Built into Rear View Mirror
Interior
  • Vertical Right-hand Entry Grab Rail
  • Filon interior walls & ceiling
  • Gerflor Yellowstone flooring
  • Non-retractable Seat Belts (4)

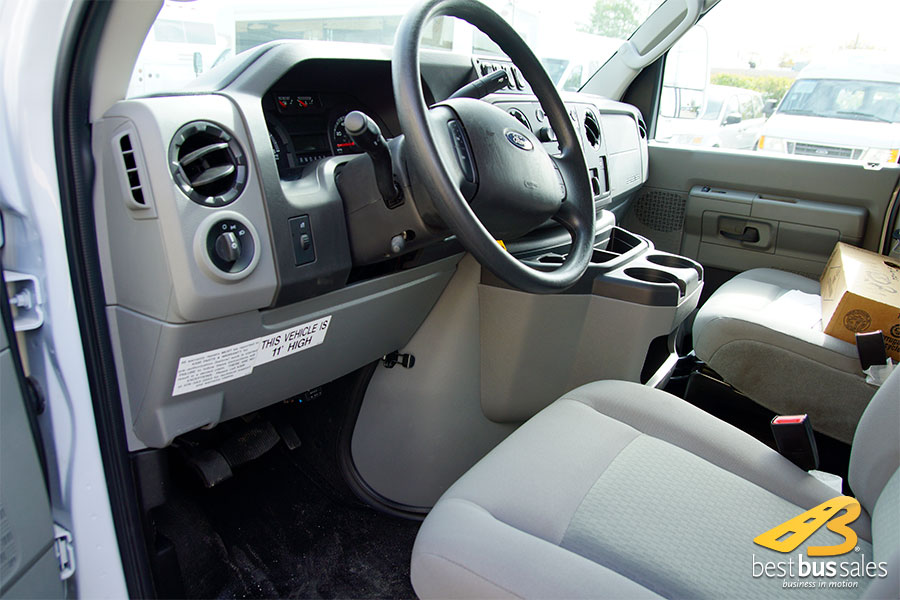

  • Ford OEM Highback Captain Driver Seat
  • Ford OEM Highback Captain Copilot Seat
Safety
  • Fire Extinguisher
  • Emergency Triangle Kit
  • Backup Alarm
Wheelchair Lift
  • Wheelchair Interlock (required for any lift)
  • Contoured double wheelchair doors (curved to match body)

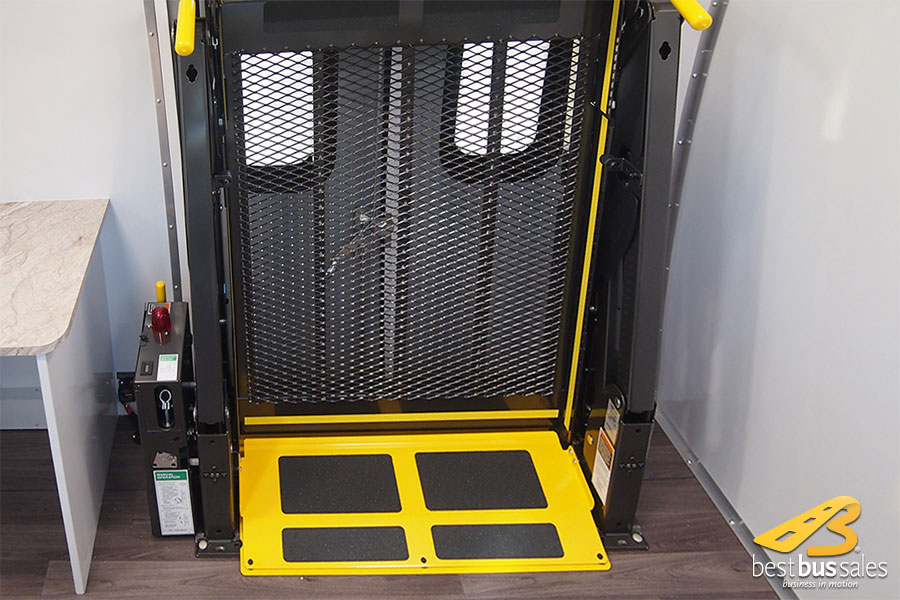

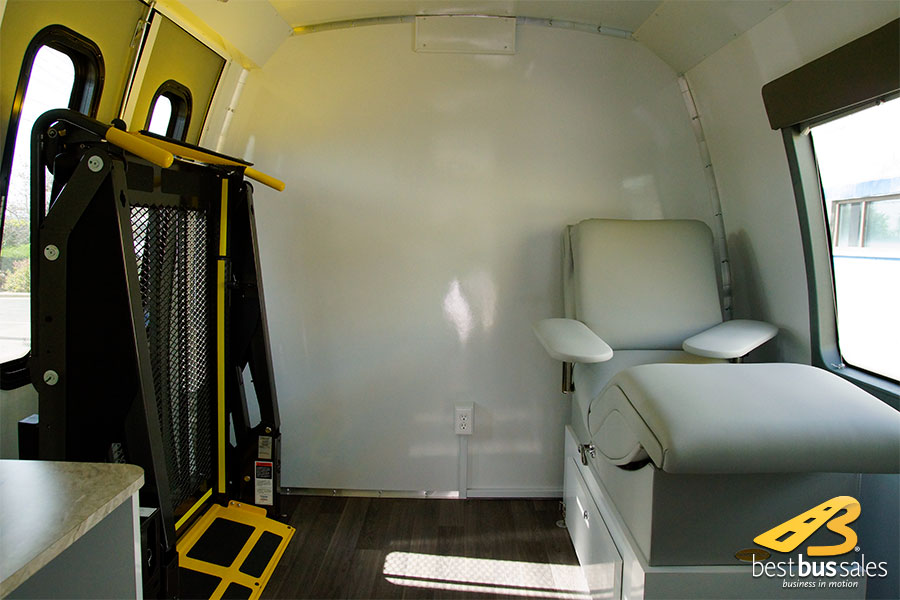

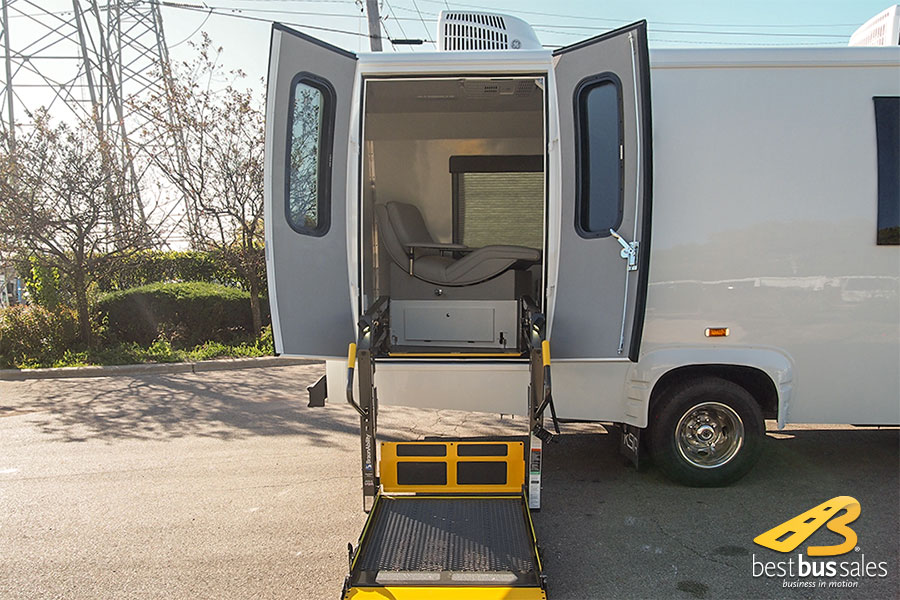

  • Braun Century 2 NCL wheelchair lift with 34" × 51" platform
Exterior
  • White Full Body Paint with Clear Coat (standard build/no graphics)

Single Station Mobile Blood Draw/Vaccination Bus

Layout & Dimensions

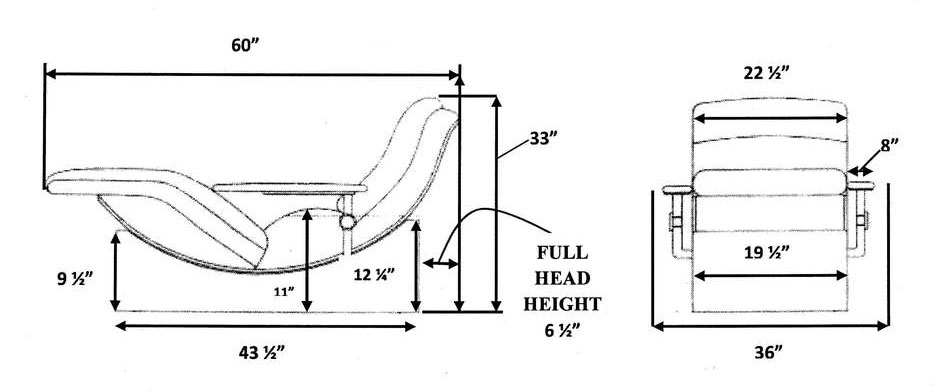

Dacor chair dimensions

Dacor® Chair Dimensions

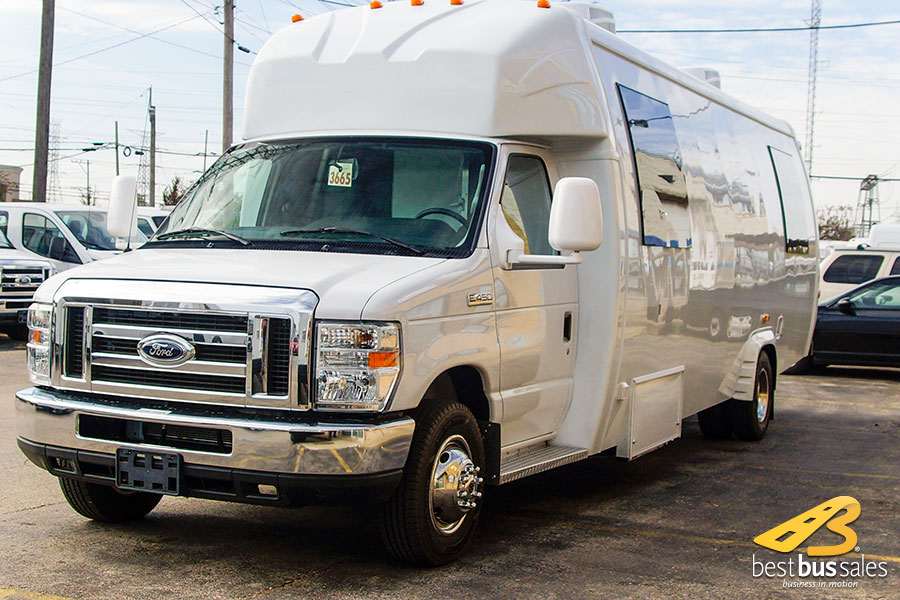

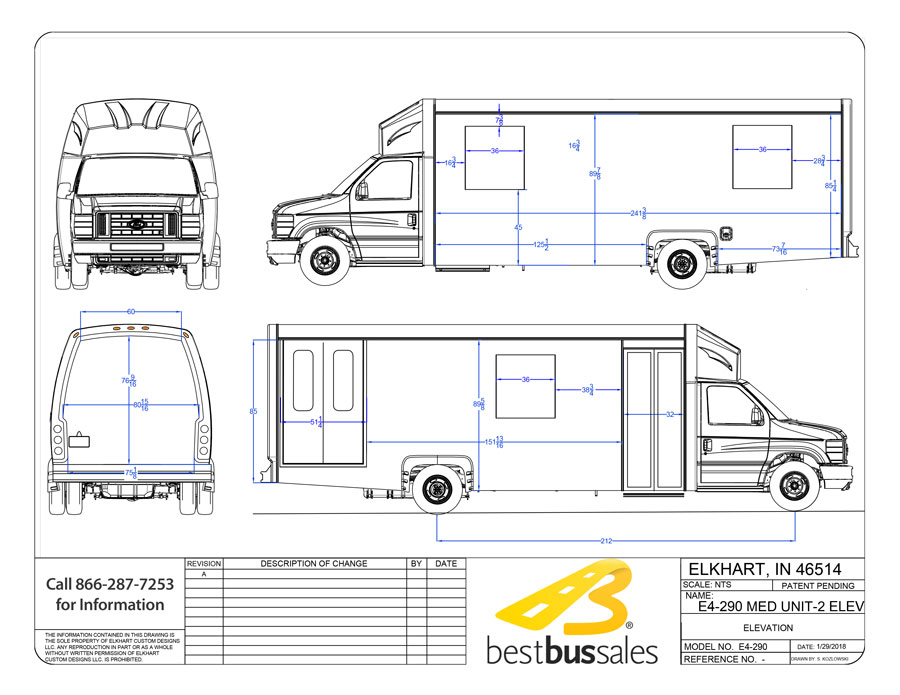

E4-290 Exterior

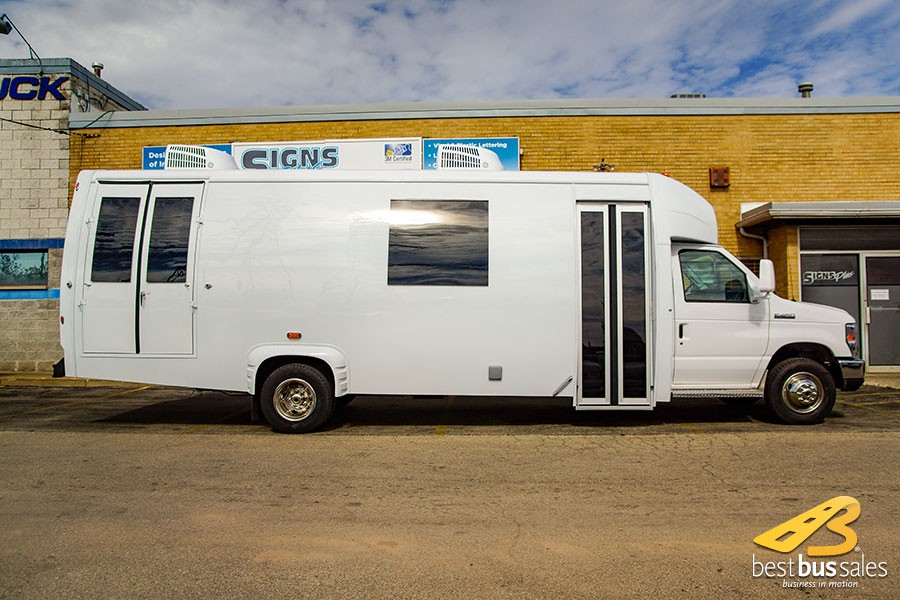

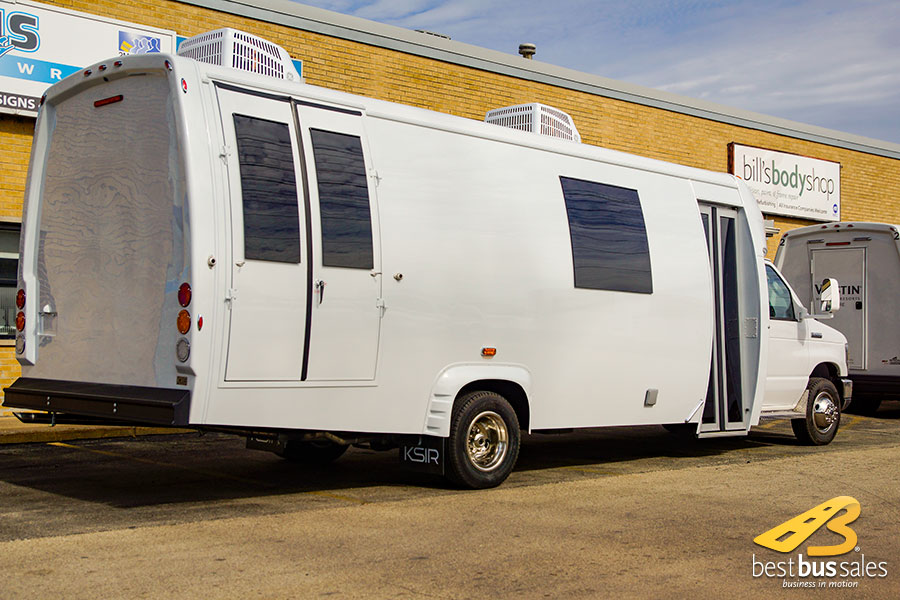

E4-290 Bloodmobile Exterior

E4-290 1-chair with w.c. lift interior drawing

E4-290 1-Chair with W.C. Lift Bloodmobile Interior

E4-290 3-chair interior drawing

E4-290 3-Chair/NO Lift Bloodmobile Interior

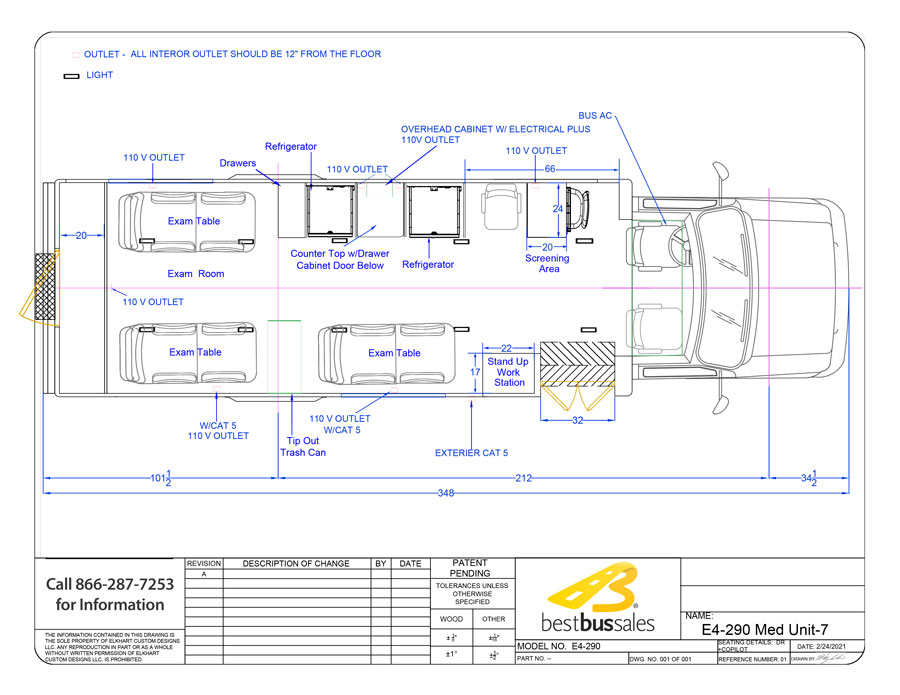

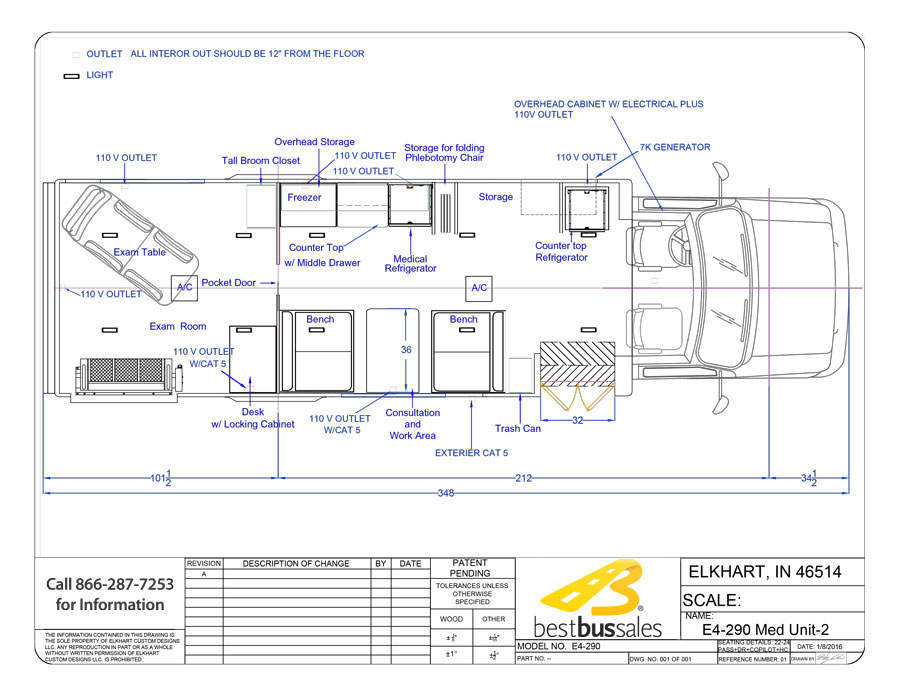

E4-290 3-chair interior layout 8

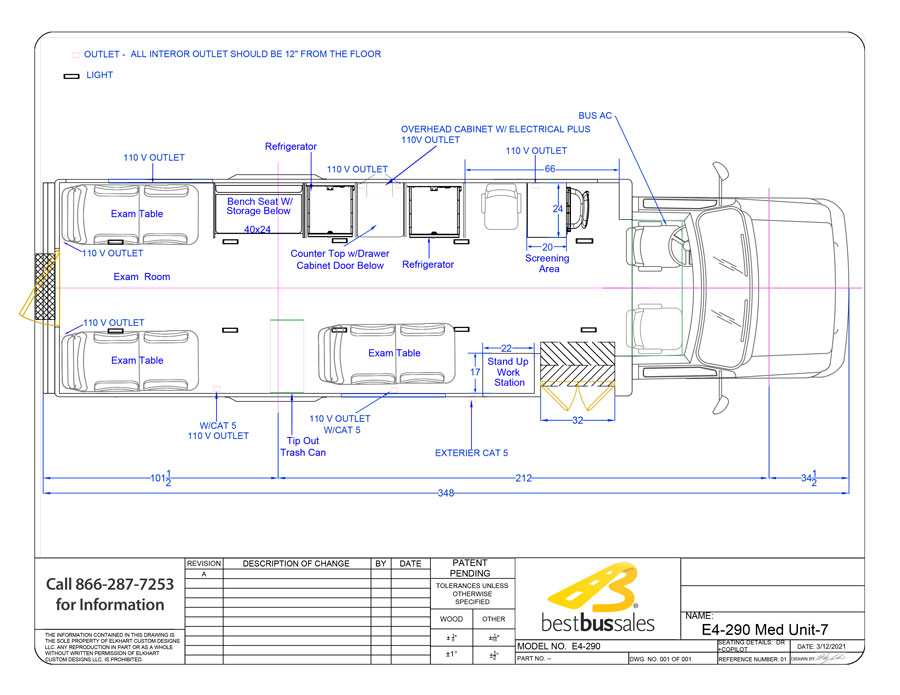

E4-290 3-Chair/NO Lift Med Unit

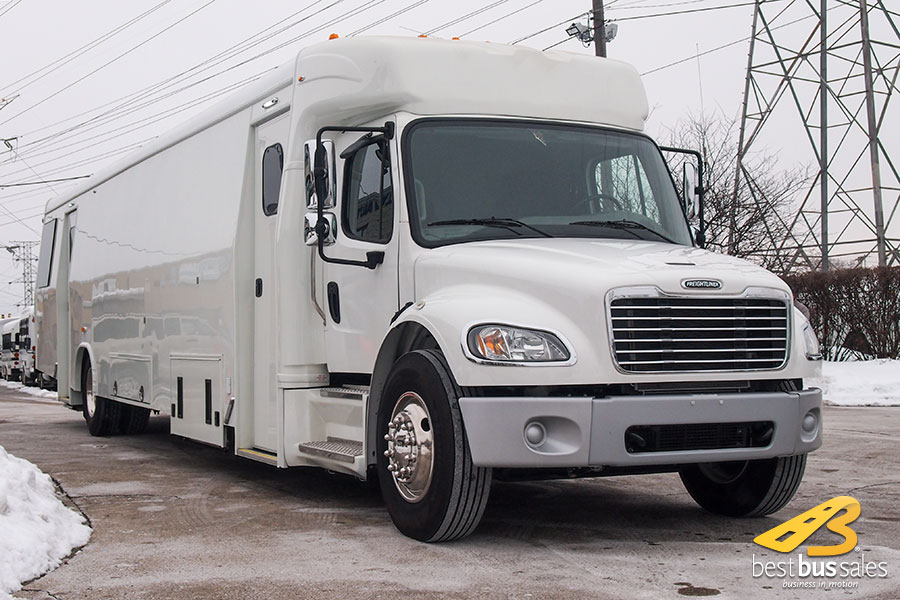

M2-450 Four-Chair Bloodmobile Features

Installed Features

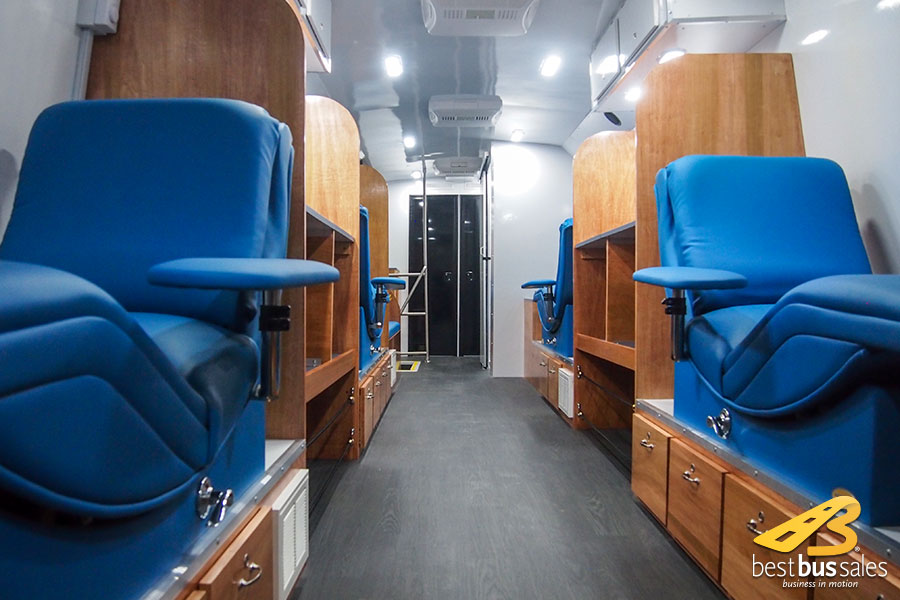

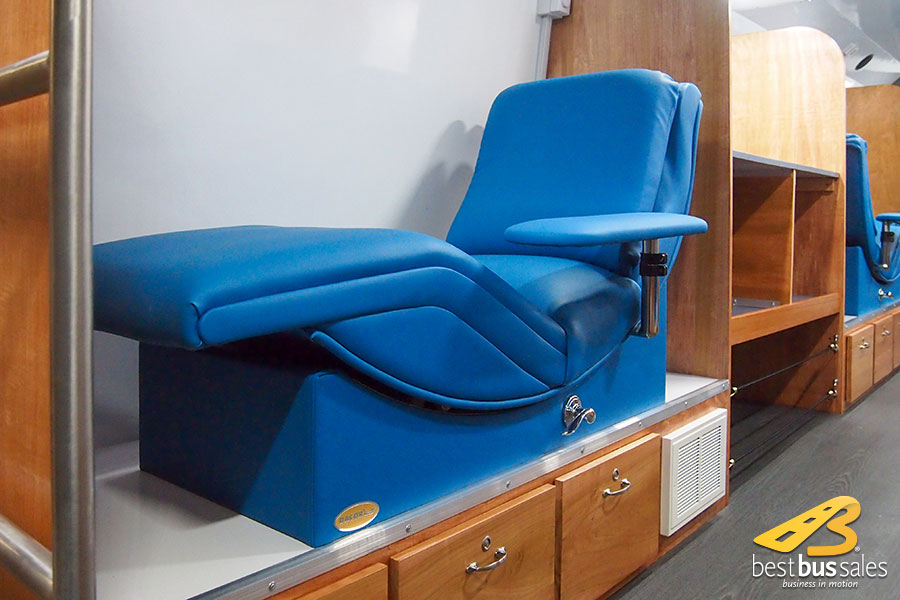

  • Dacor® blood draw & bloodmobile chairs (4)
  • Model M2-450 45'–341" WB
  • Heavy Tint on Entry Door
  • Stainless Steel Hub and Lug Nut Covers (Aluminum Wheels are Std.)
  • 22-1/2" Spare Tire and Steel Wheel
  • Spare Tire Mount
  • 1550, 110 Roof top AC units with thermostat

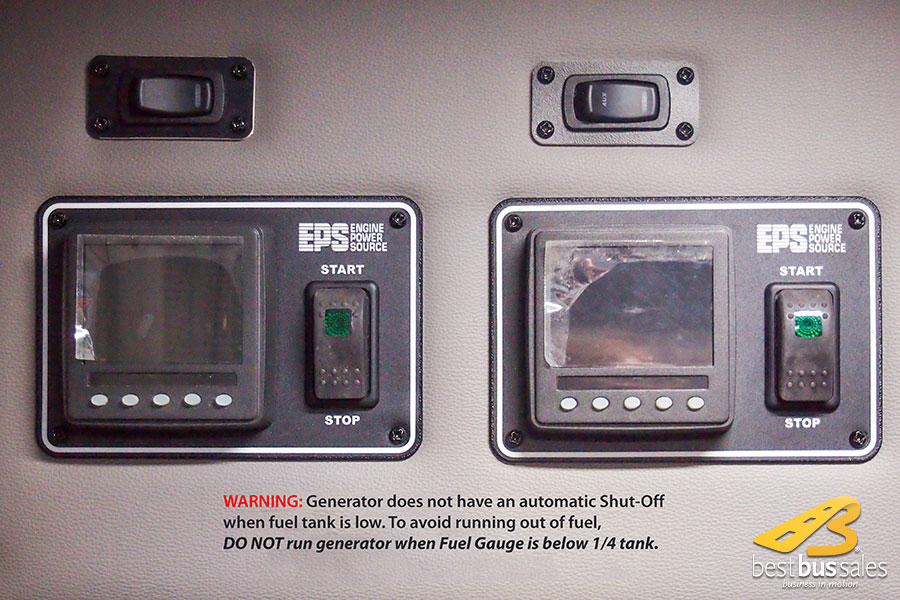

  • Diesel gen 20 k with remote start
  • Front RV style door with window
  • RV style entry door with window behind axle
  • Wall to block off cab
  • Storage above driver for all electrical
  • 50-amp shore power with ATS
  • 50-amp converter box with breakers / with 110 outlets throughout bus (13)
  • Locking fuel caps
  • 30' shore power cord 50 amp
  • Exterior outlet with weather tight cover
  • LED Interior lighting
  • Dedicated battery for generator
  • Flip down step for rear door
  • Carbon monoxide detector
  • Smoke detector
  • Bench seat with storage below
  • Steno chair with arms
  • Solid wood upper cabinet with doors–both sides of unit
  • Solid wood Desk with pull out drawer
  • 3.6 c.f. 110-volt refrigerator in cabinet
  • Task lighting throughout bus
  • Rear radio with 8 speakers and remote volume control
  • Leveling system
  • Blood donor bed with arm rest

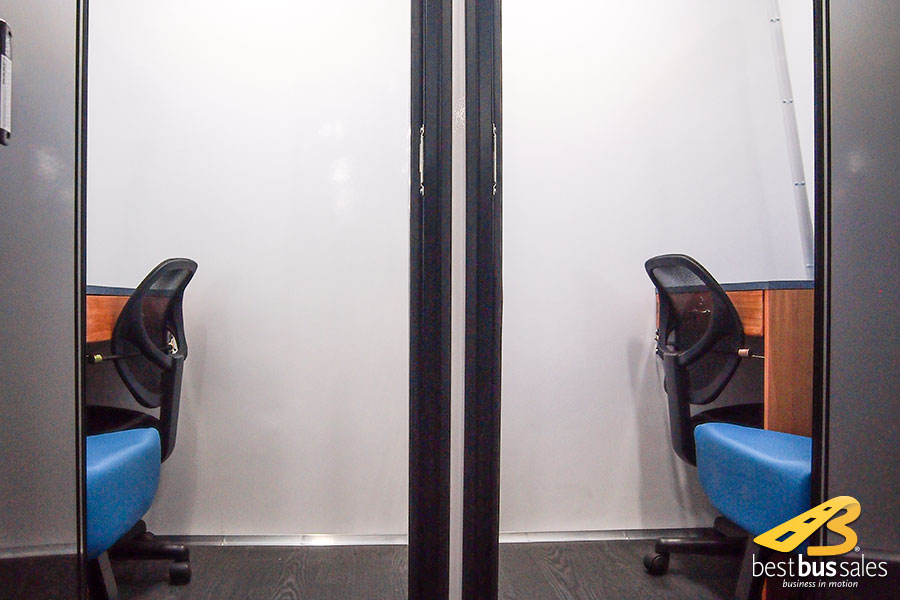

  • Twin office with 20" doors
  • 1500-watt base board electric heater with thermostat
  • 750-watt base board electric heater with thermostat
  • Integrated trash cans in donor stations
  • Hooks to tie down chairs for travel
  • Single office with sliding door
Windows
  • Frameless Solid Windows–Standard
  • Night Shades with Valance (Per Window)
  • Black Interior Window Shrouds (Full Set per Bus)
Lighting
  • Additional Stepwell Light (LED)
  • Exterior Light at Passenger Entry Door (LED Flood Light)
  • Mid-Ship Turn/Marker Lights (LED) Required by FMVSS
  • Rear Center Mounted Additional Brake Light (LED)
  • Exterior scene lights
Storage, Luggage, Roof Hatches, Rear Doors
  • Underfloor Storage Bins (12"H × 48"L × 18"Depth)
  • Standard Rear Bumper with Anti Ride Feature
Electrical
  • Fast Idle (Std on Chassis)
  • Rotary Disconnect Switch
Radios / TV Systems / Monitors
  • AM/FM/CD with (2) Speakers
  • PA System & Back up Camera
  • Zone Defense System with 7"LCD Monitor and (1) Camera (Back Up)
Interior
  • Vertical Right Hand Entry Grab Rail
Walls & Ceiling
  • Filon Walls and Ceiling
Flooring
  • Altro Manor Oak
Driver/Copilot Seats
  • Driver Seat: Freightliner OEM HB Air Suspension–Gray Fabric
  • Co Pilot Seat: Freightliner OEM HB Air Suspension–Gray Fabric
Safety Equipment
  • Fire Extinguisher
  • 25 Unit First Aid Kit
  • Emergency Triangle Kit
  • Back Up Alarm
  • Fast Idle (Std on Chassis)
Paint and Graphics
  • White Full Body Paint with Clear Coat (Standard)
  • No Stripe (Plain White Bus)

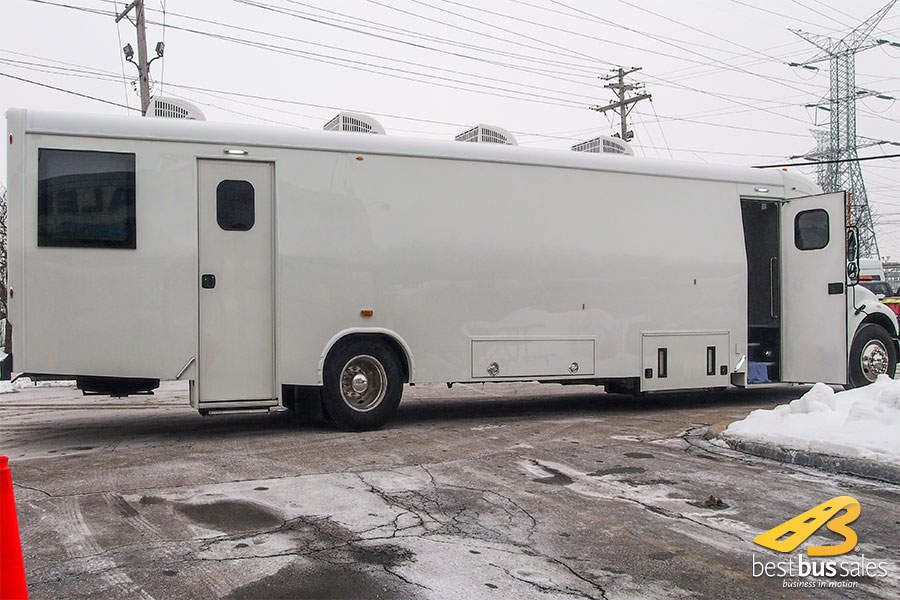

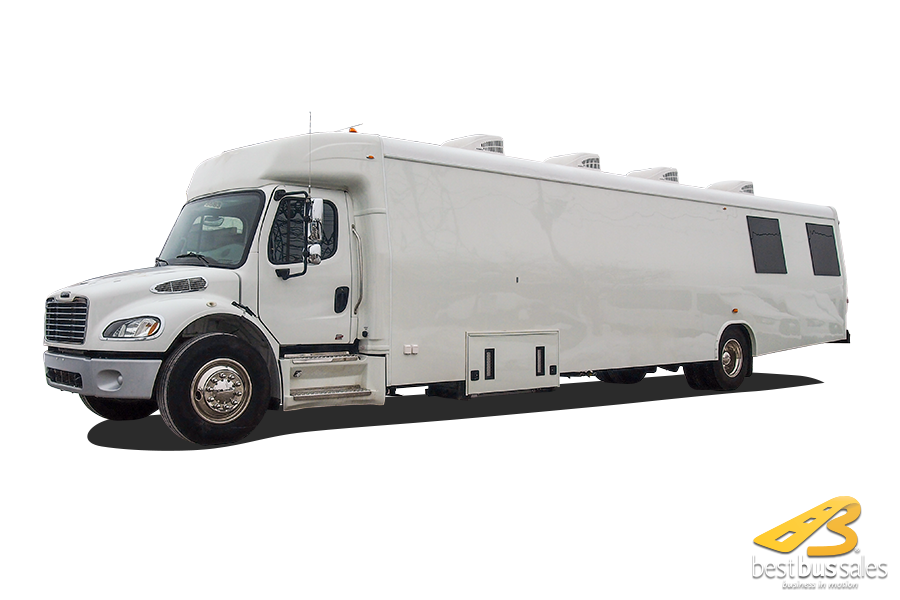

Four Chair Bloodmobile / Vaccination Bus

Layout & Dimensions

chair dimensions

Dacor® Chair Dimensions

floorplan 1

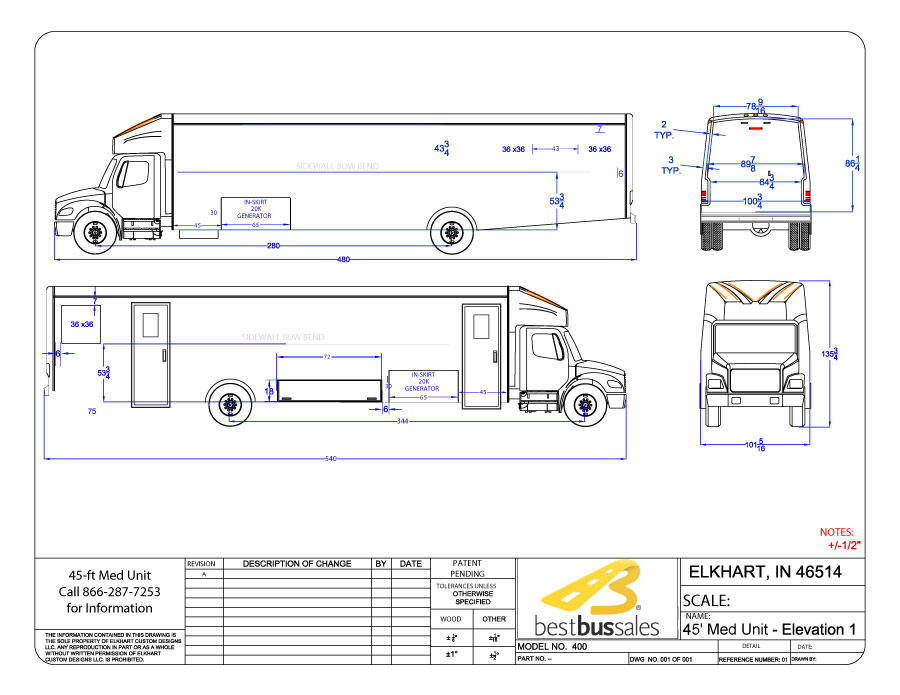

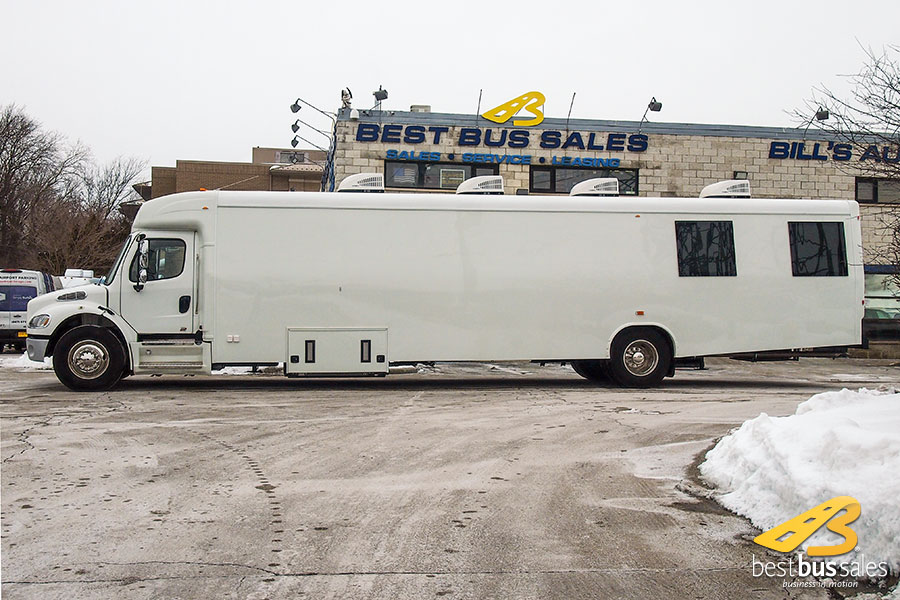

M2-450 45-ft Bloodmobile Exterior

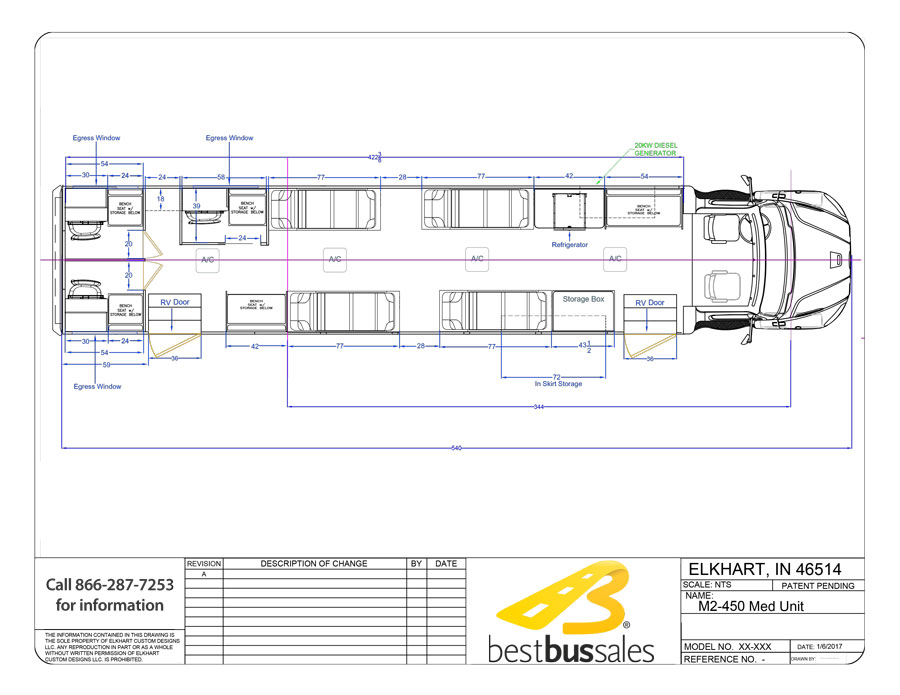

floorplan 4

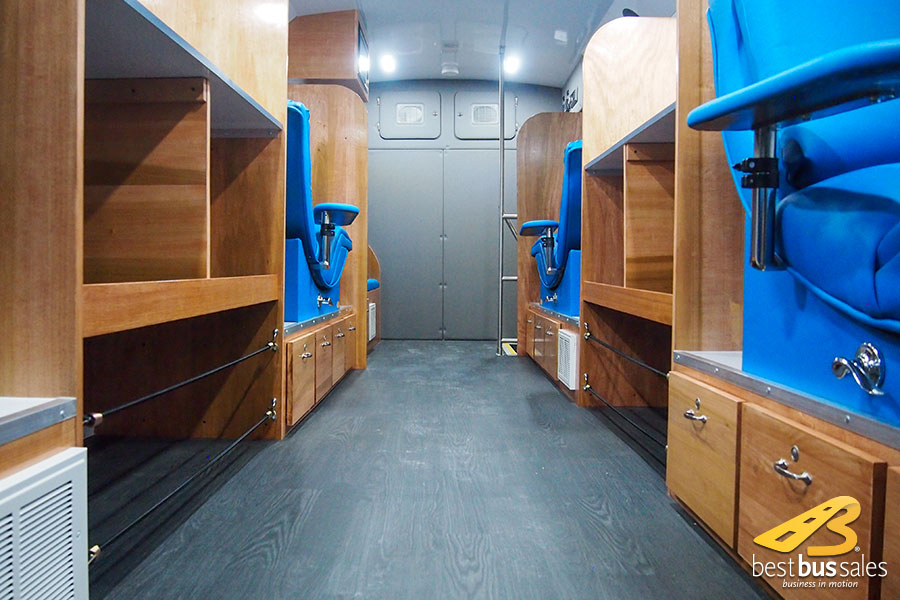

M2-450 45-ft Bloodmobile Interior

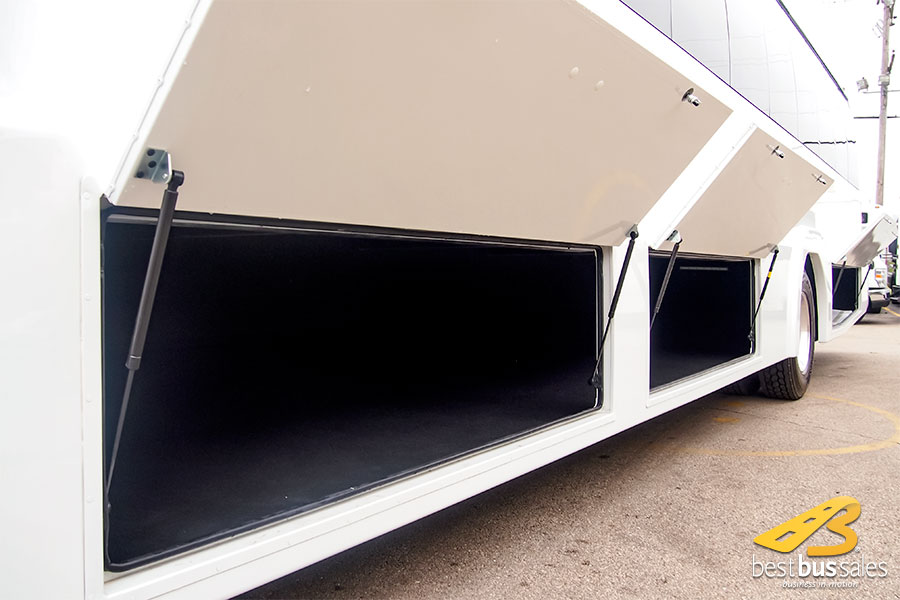

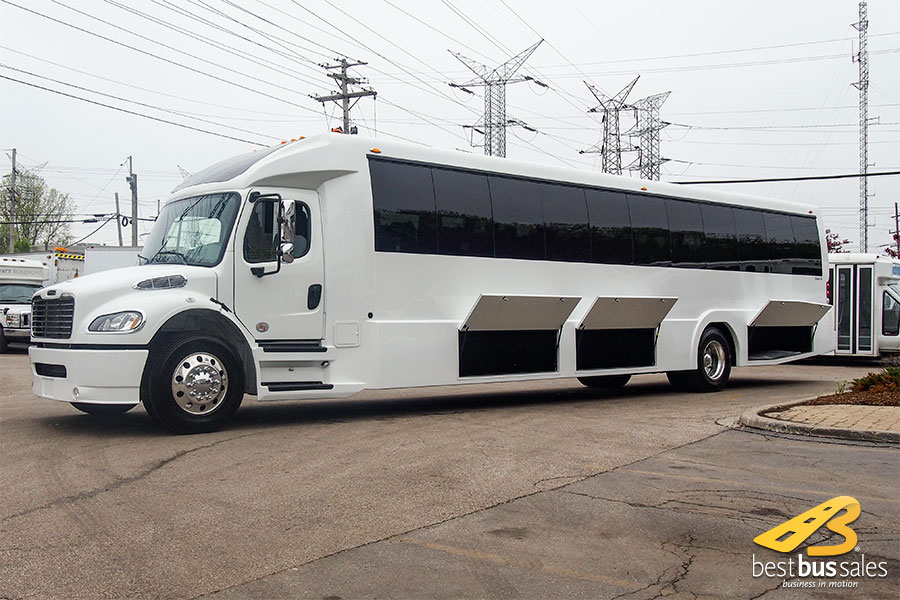

M2 Chassis with Under‑Cabin Storage

The 3 – 4 chair M2 Bloodmobile is also available with below deck storage, providing ample room for luggage, signage, and everything you'll need for a successful Blood Donation Campaign.

M2 storage 1
M2 storage 2
