5 Year/100,000 Mile Warranty
Glaval's unprecedented 5-Year/100,000 Mile Warranty—standard on Glaval Universal.

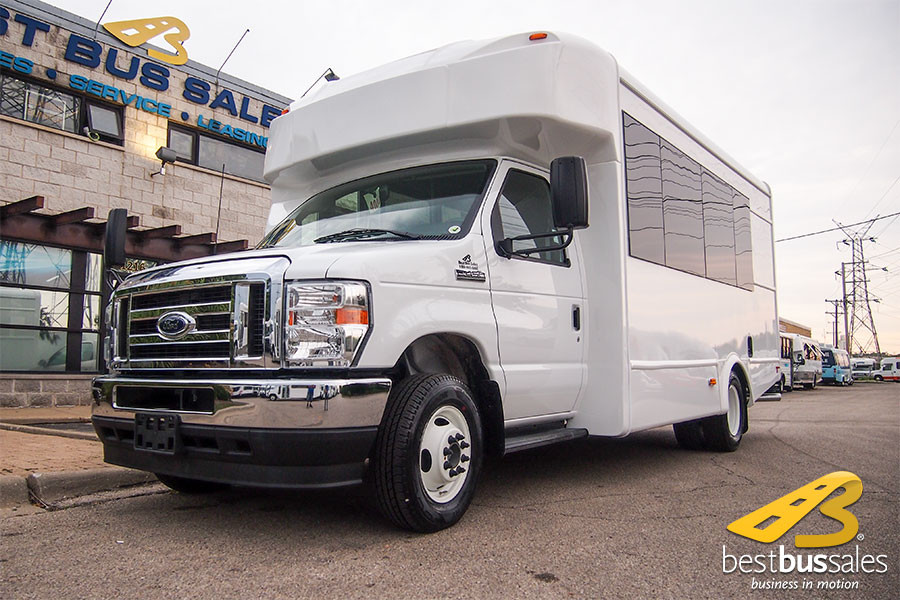

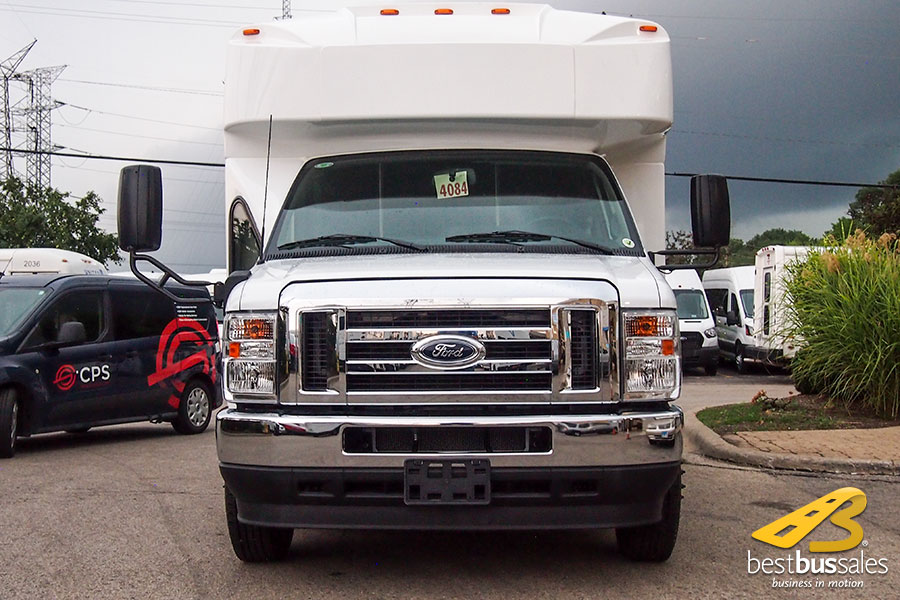

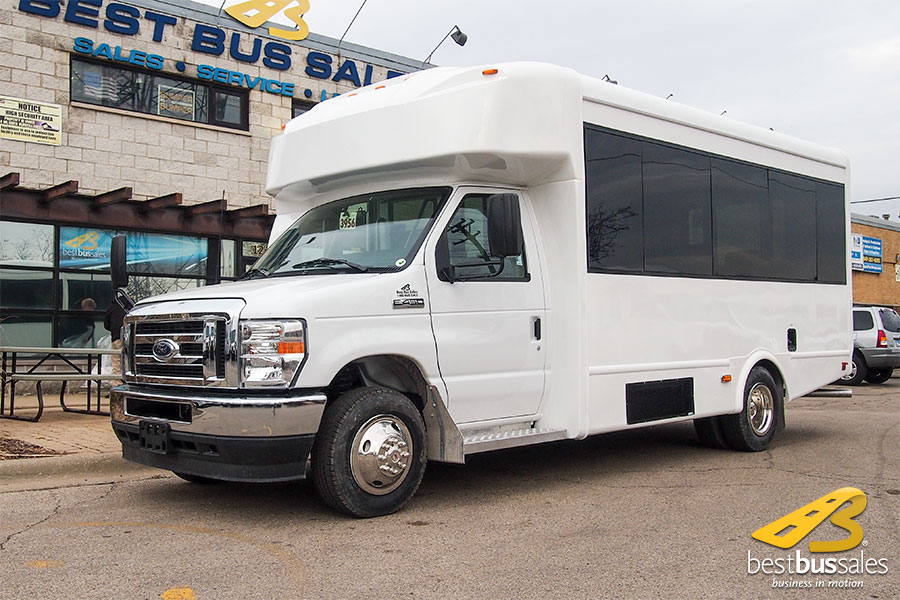

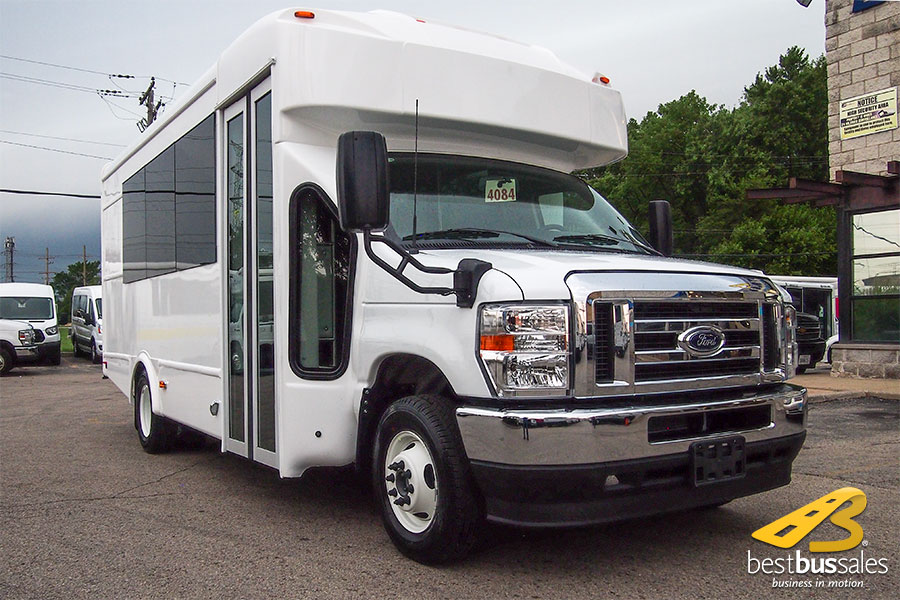

If dependability is your top priority, the Universal is offered on the proven Ford E-Series chassis, available with either the 5.4L or 6.8L gas engine.

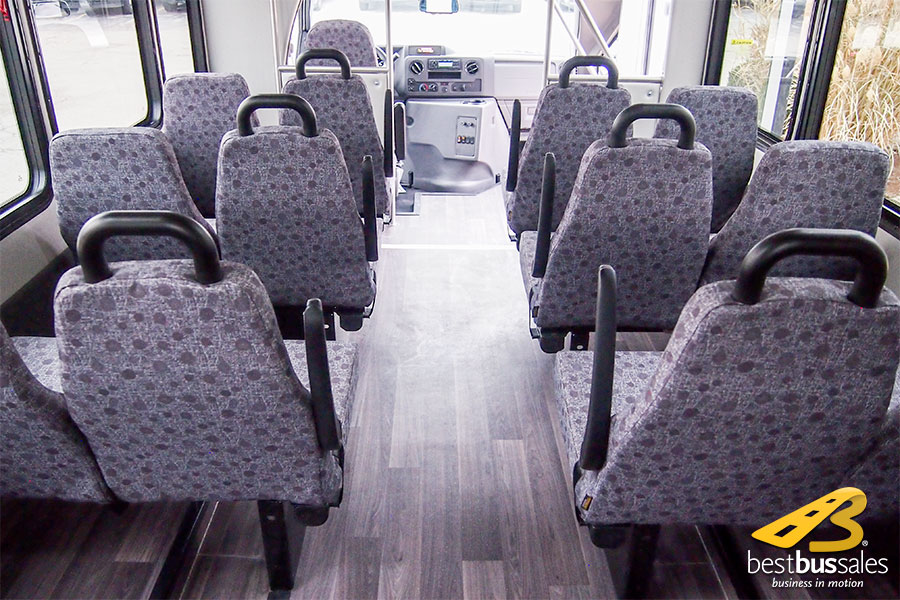

Up to 25 passengers can travel in solid, quiet comfort with an interior styled to meet your specific application requirements.
With many standard features and available options, you can have the rugged durability with Glaval’s industry leading Steel-Safe construction at an affordable price!
Specifications for Universal
Steel–Safe Structure
- Steel Treatment:
- 100% Galvanized Steel
- Vertical & Horizontal Wall Structure:
- Steel tube with HSLA seat track welded to each vertical
- Roof Structure:

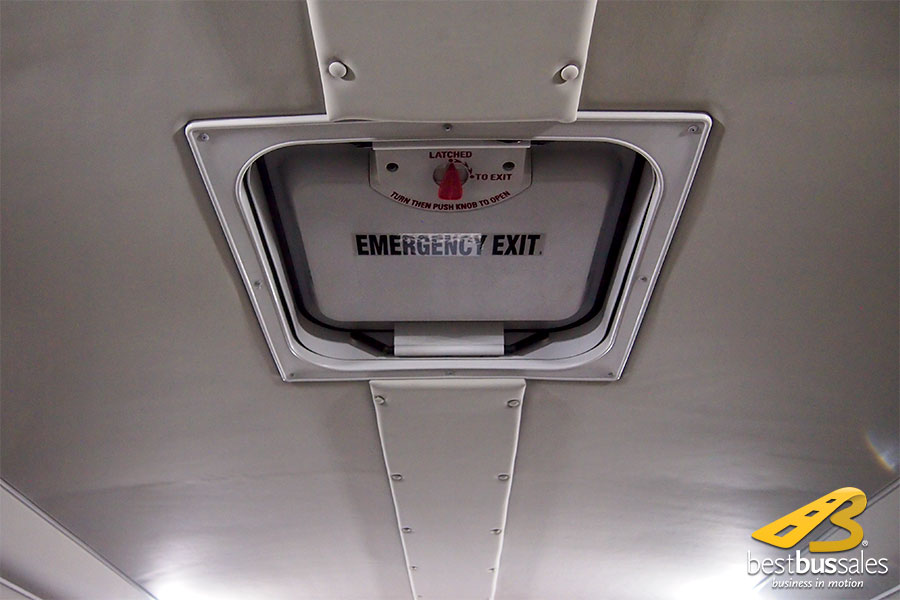

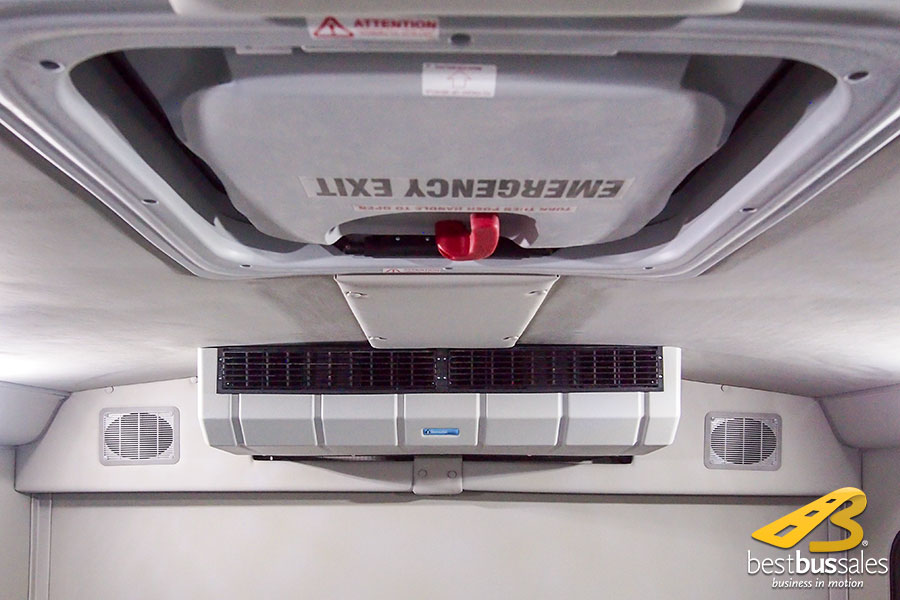

- 16 gauge steel capped "hat" channel with on 16" centers with built-in roof hatch frame
- Crossmembers:
- Full width, with longitudinal angle, "hat" channel and "C" channel welded to form a ladder-like structure with a structural angle front-to-rear perimeter, welded to each crossmember
- Seat Track:
- HSLA roll formed track welded to "hat" channel

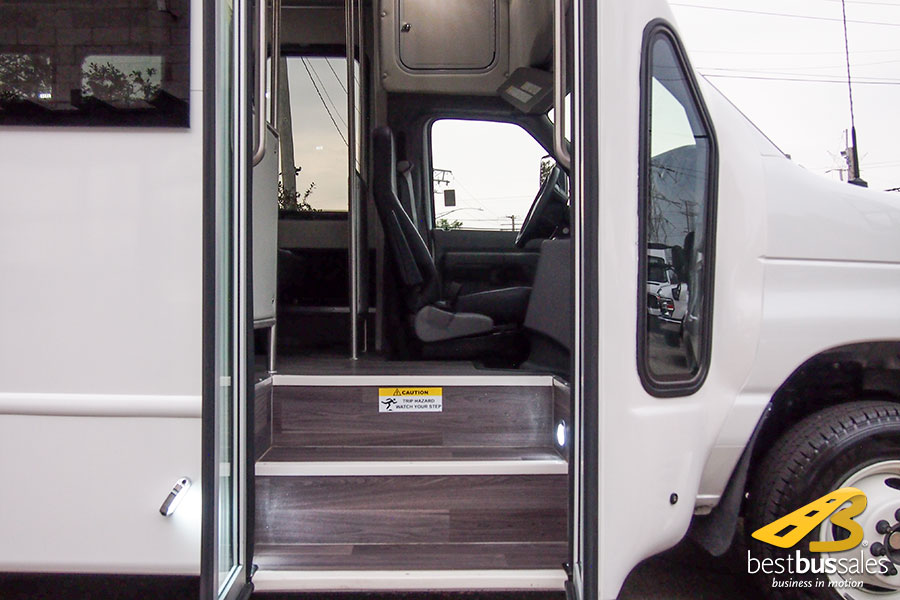

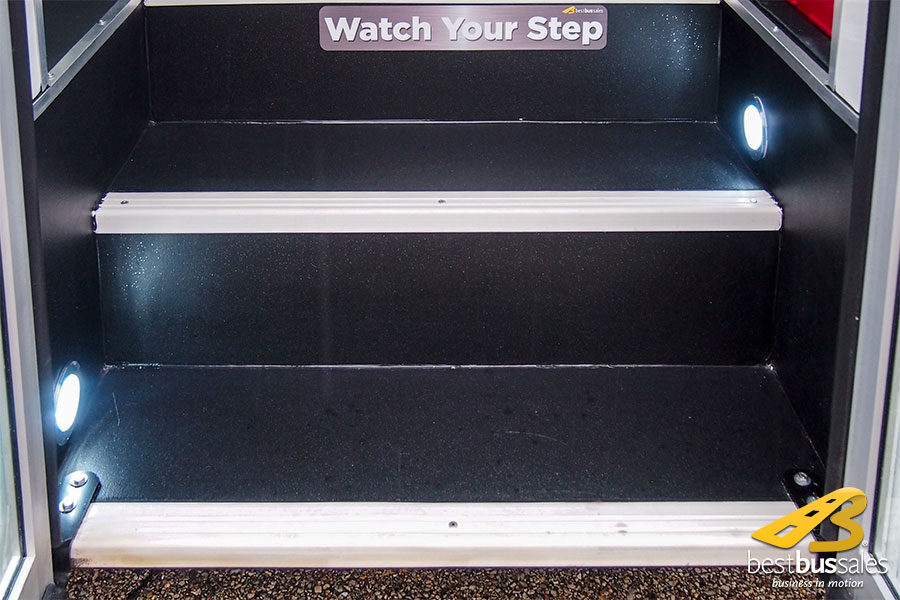

- Entryway:
- One-piece, welded
- Wheel wells:
- 14 gauge steel
- Welded structure:
- One-piece welded structure eliminates need for bolts

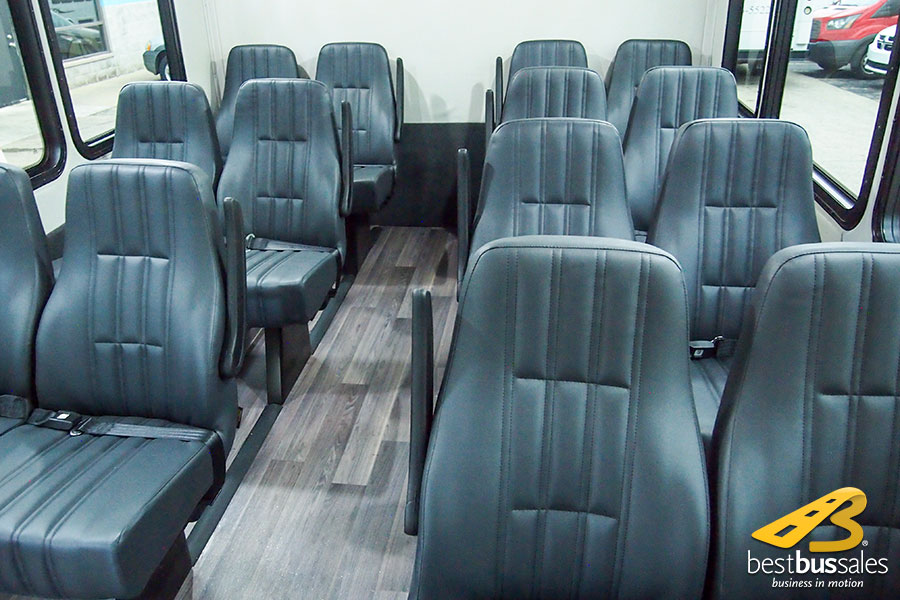

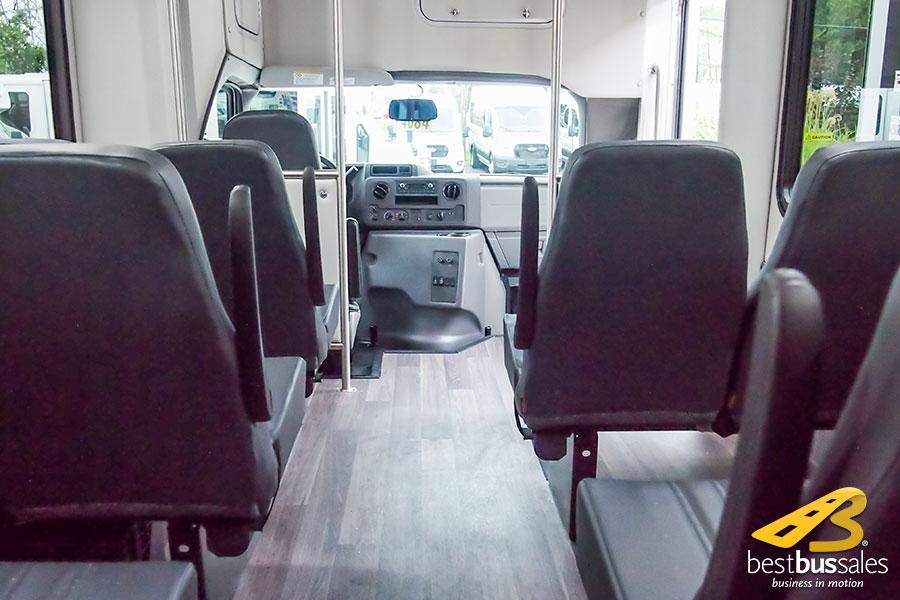

Interior
- Floor decking:
- 5/8" Marine Tech plywood
- Floor covering:
- Gerflor Sirius NT 2.2mm Graphite with coved sides and White step nosings
- Sidewalls:
- Light Grey FRP
- Rear Wall & Ceiling:
- Gray Padded Vinyl
- Ceiling:
- Gray Padded Vinyl
- Lighting:
- LED Dome and Entry

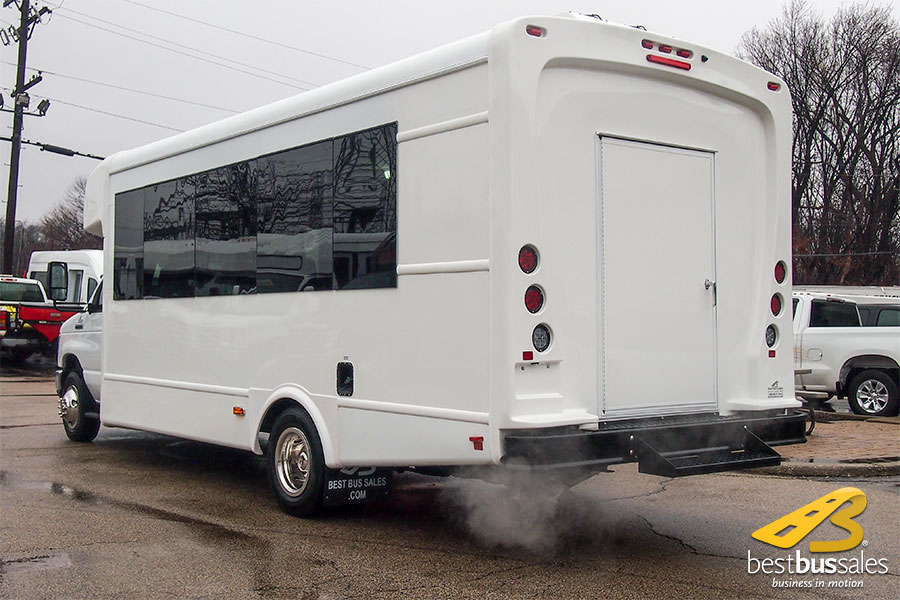

Exterior
- Exterior Skins:
- Pre-painted galvanized steel pressure laminated to sidewall structure
- Exterior Skirts:
- Pre-painted galvanized steel
- Exterior Roof Skin:
- One-piece FRP
- Windows:
- 36"×36" (24"×36" as "fillers") side upper T-Slide (solid window over street side exhaust) and 30"×48" rear
- Wheel flairs:
- Vacuum formed thermoplastic

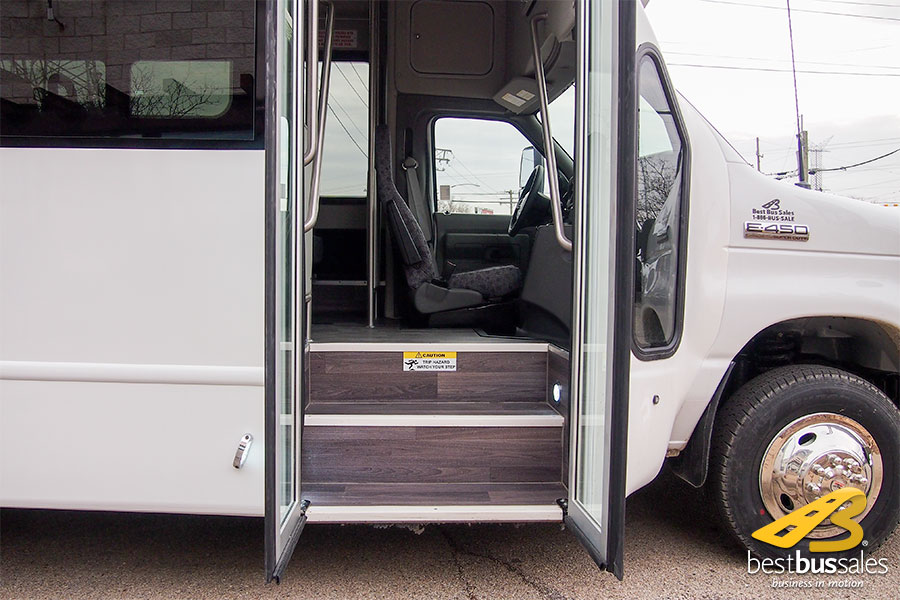

- Entry Door:
- 36" electric (manual available)
- Drip Rails:
- Full-length drip rails over side windows
- Front Cap & Wings:
- Fiberglass

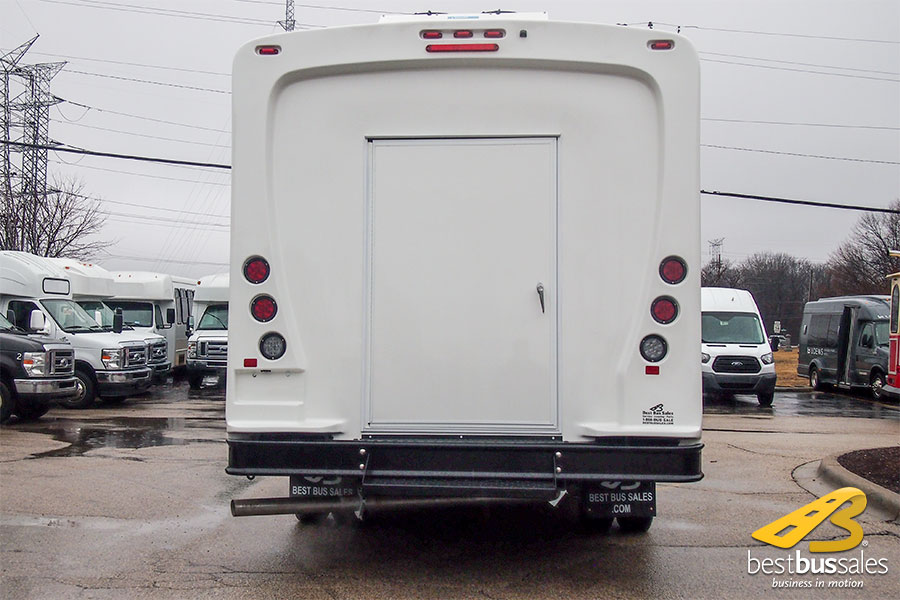

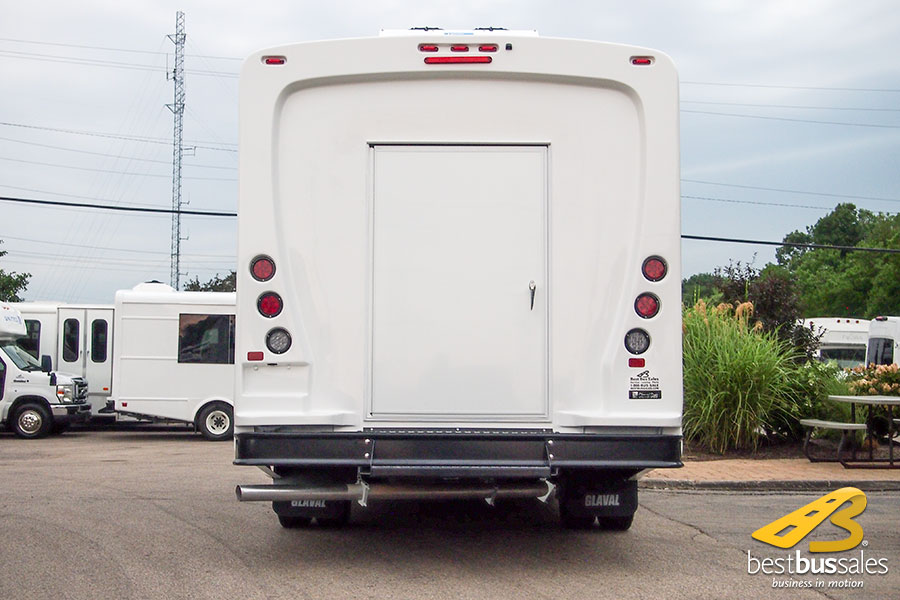

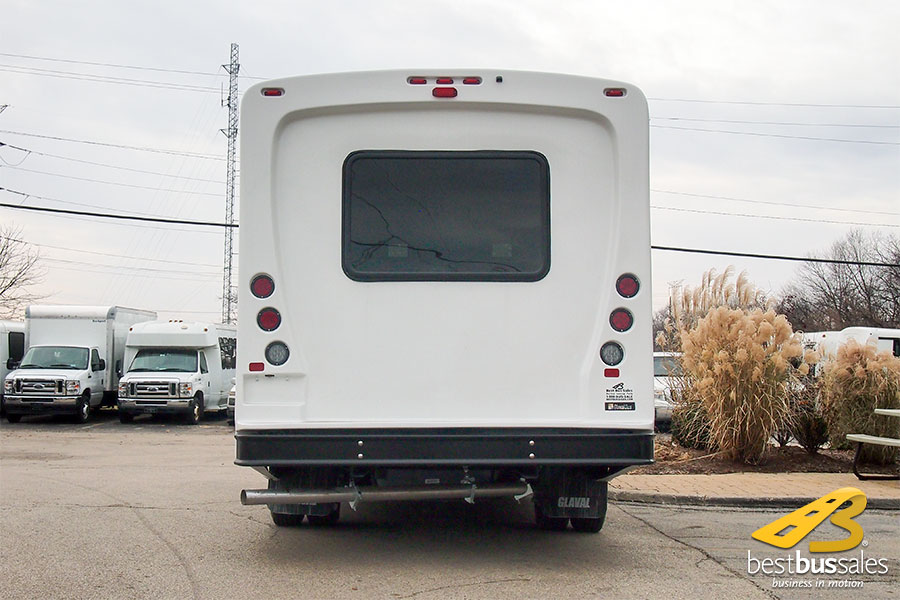

- Rear Cap:
- One-piece fiberglass
- Rear Bumper:
- Heavy gauge stamped steel ekote painted black
- Lighting:
- LED body lights
- Mirrors:
- Rosco Accustyle Manual M815
- Backup Camera
Electrical
- Electronic Distribution Panel:
- Intermotive FlexTech PRPC programmable located in compartment over driver door with attractively framed access door that includes ventilation
- Wiring Harness:
- Custom built 100% machine crimped and tested with color & number coding

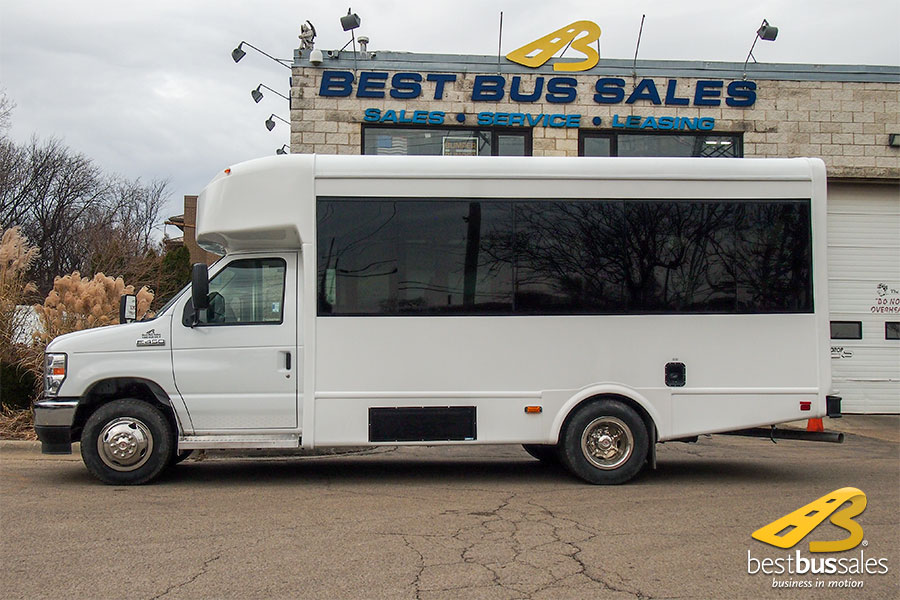

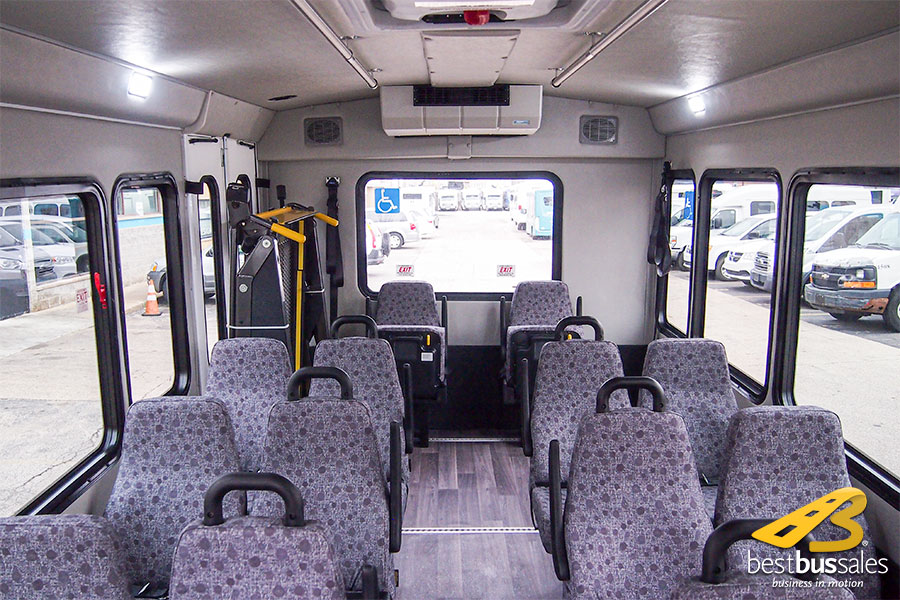

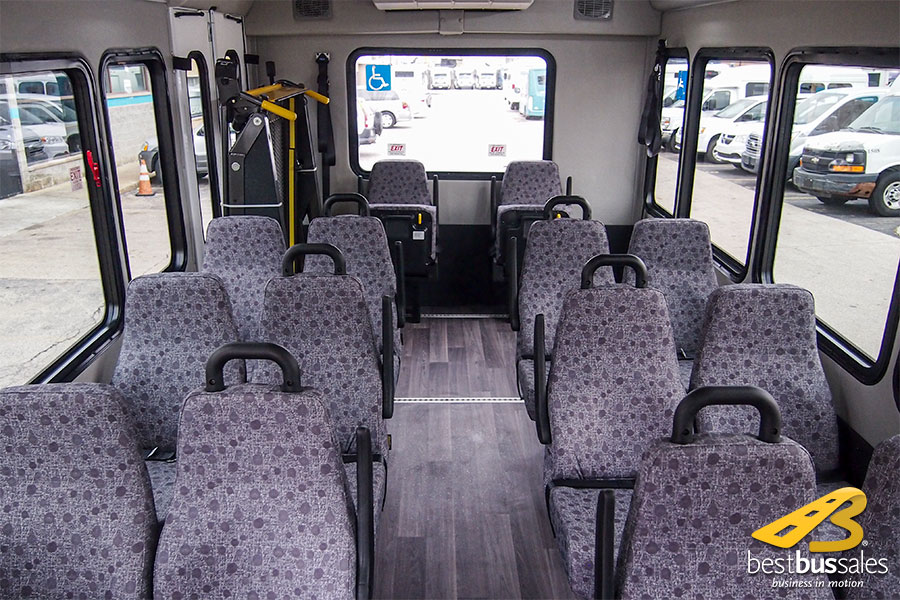

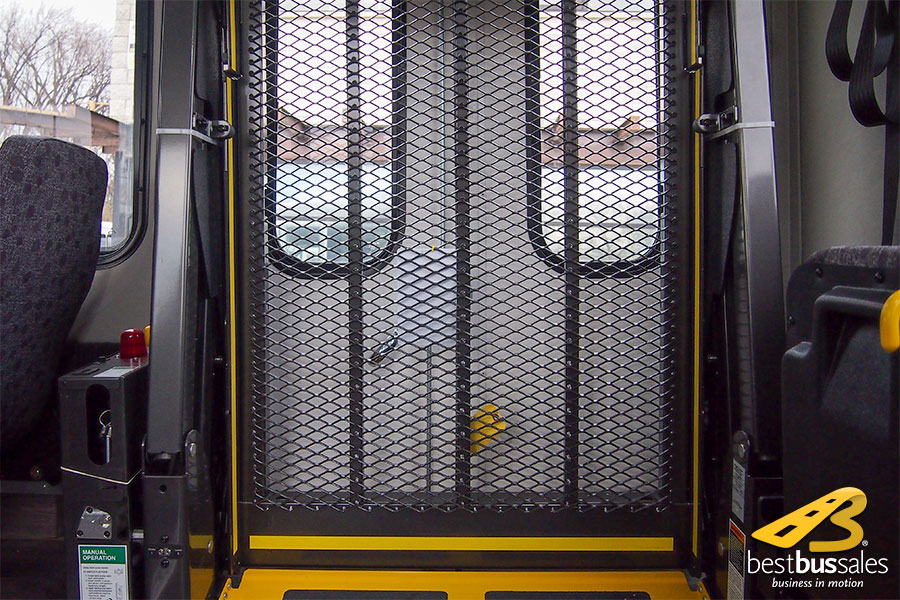

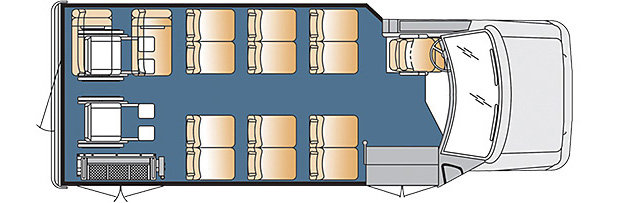

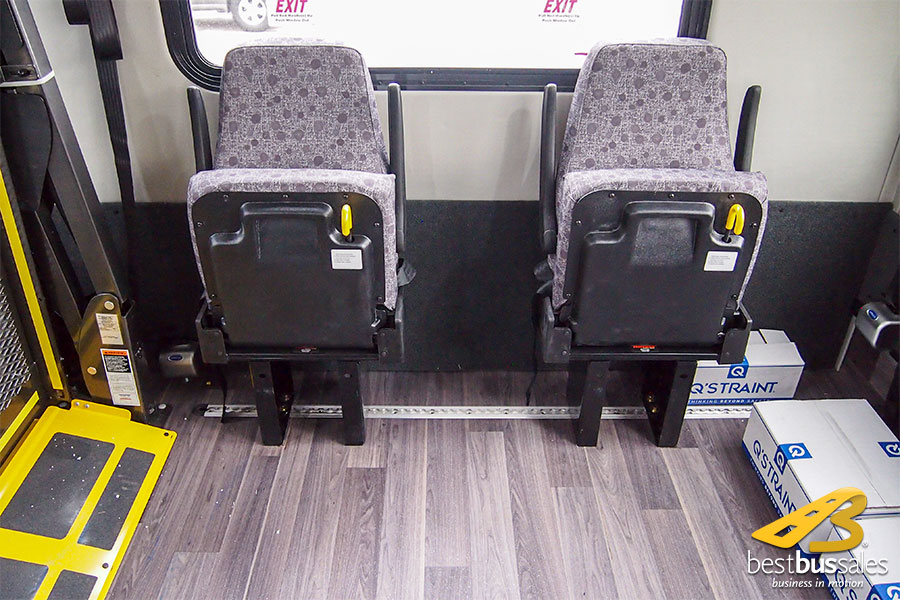

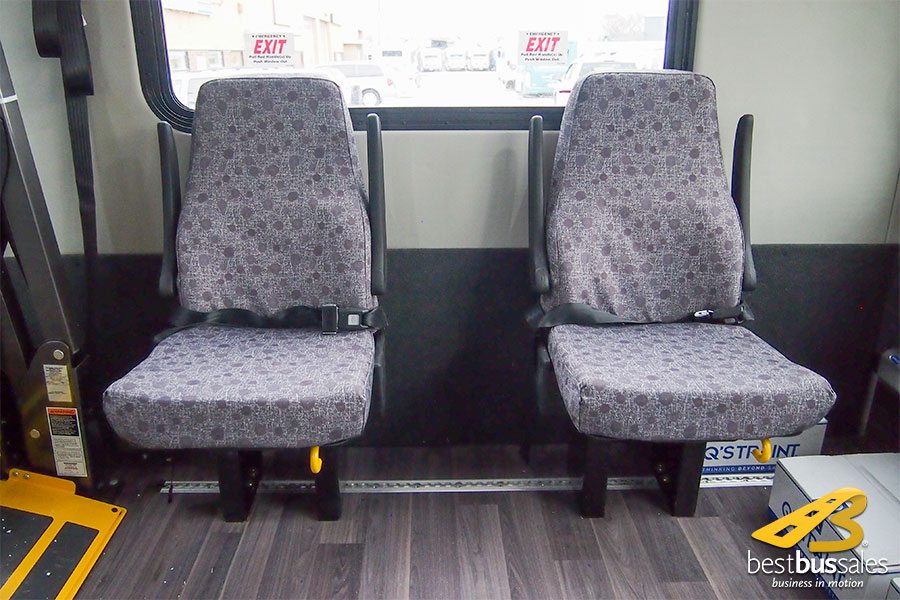

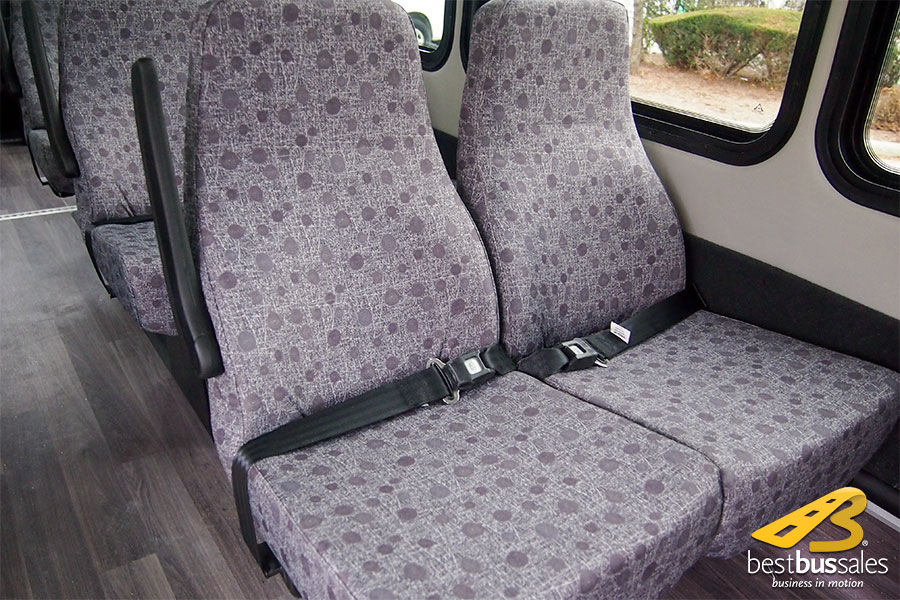

12 passengers + 2 wheelchairs + driver

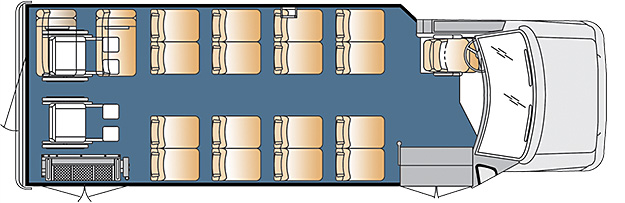

16 passengers + 2 wheelchairs + driver

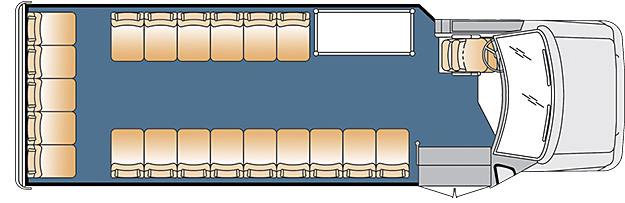

20 passengers + interior luggage rack + driver

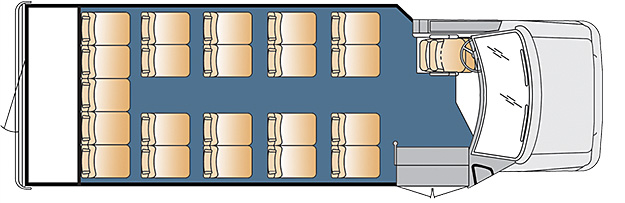

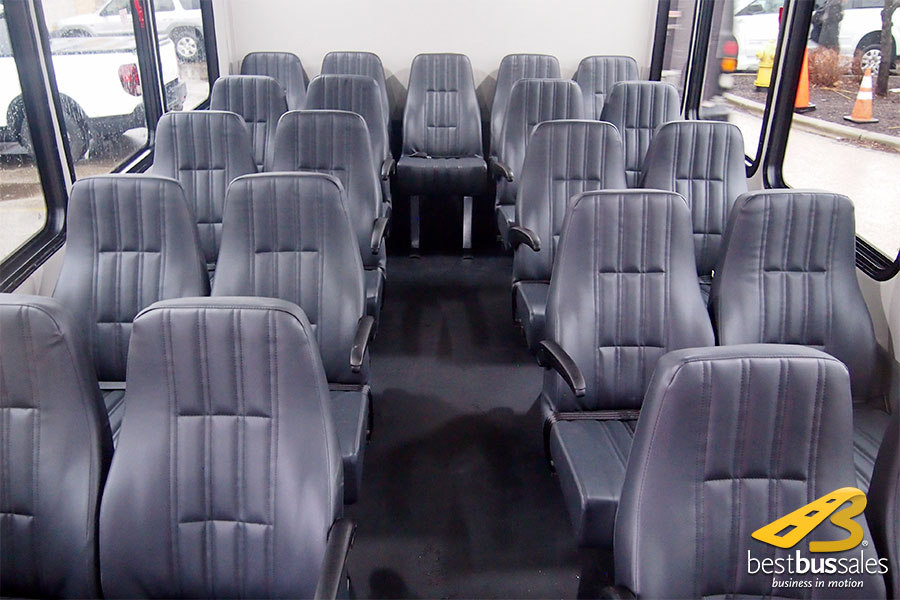

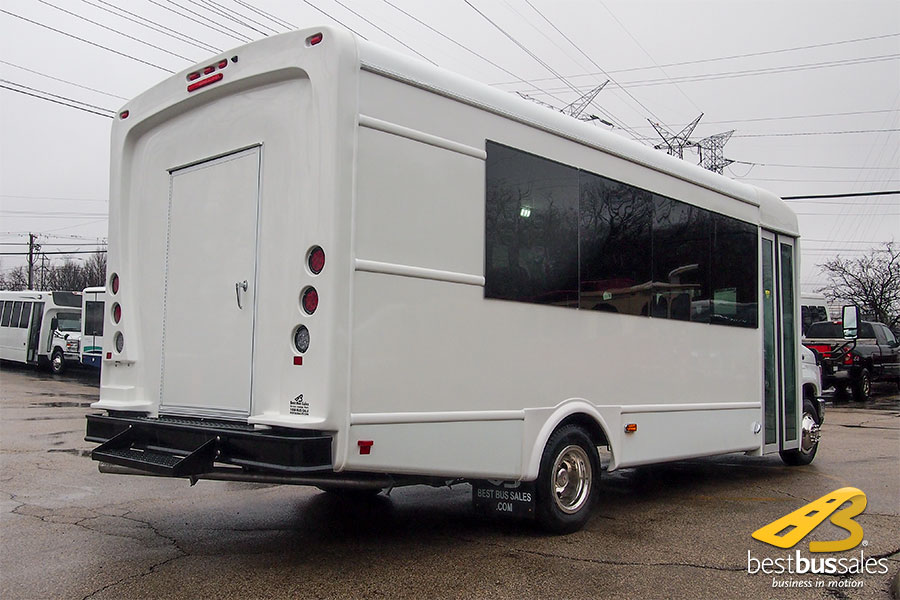

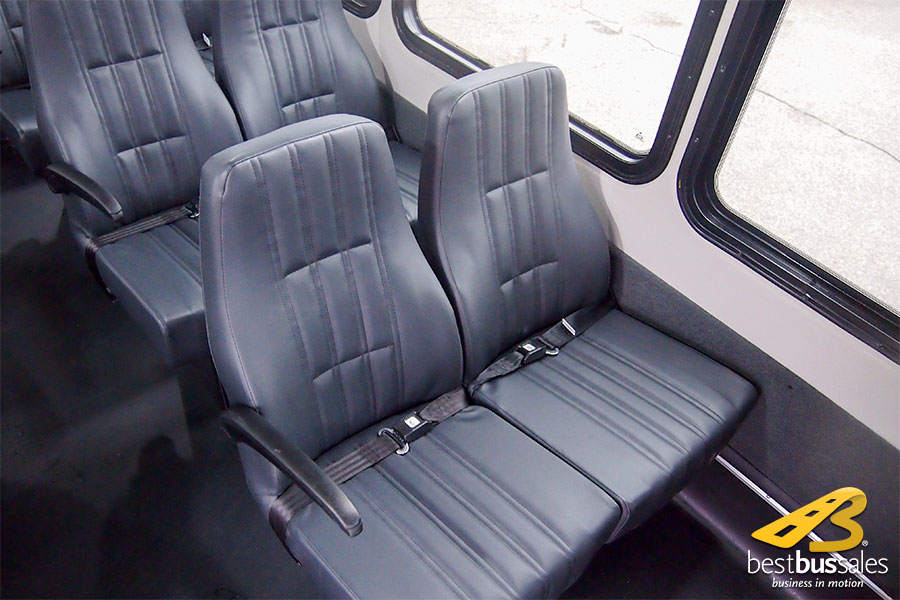

21 passengers + rear luggage + driver

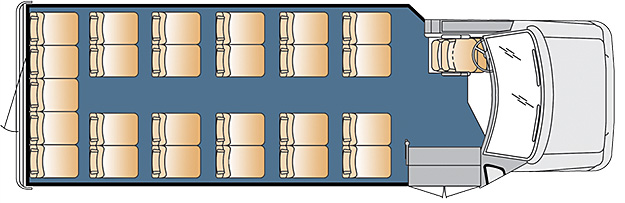

25 passengers + driver
For additional information and configuration, call (866) BUS-SALE or use the Get in Touch form below.
