5 Year/100,000 Mile Warranty
Glaval's unprecedented 5-Year/100,000 Mile Warranty—standard on Glaval Commute.

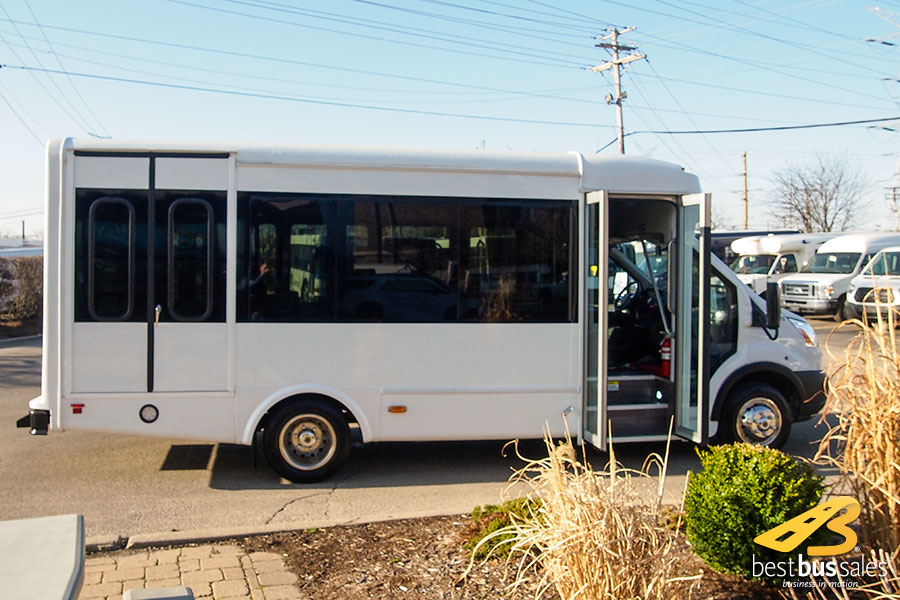

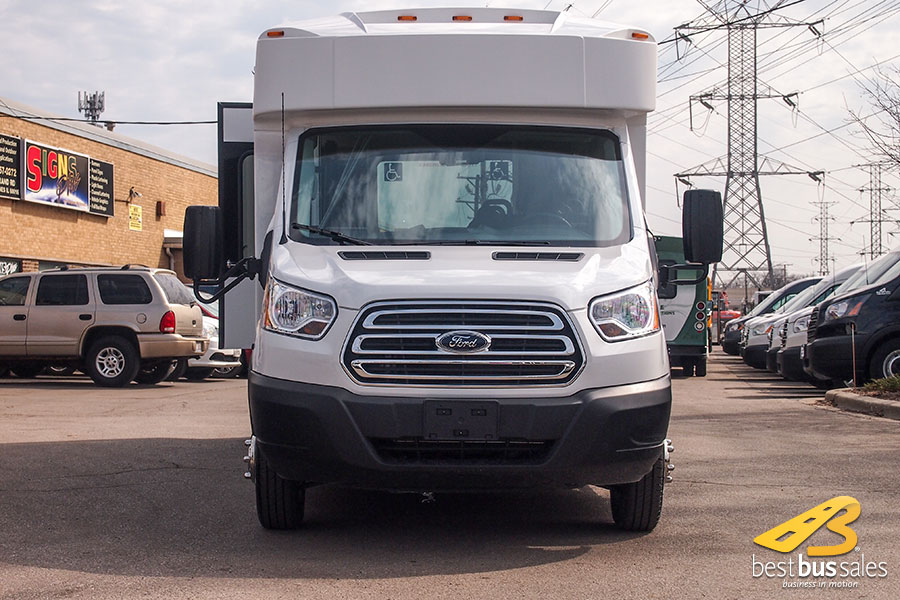

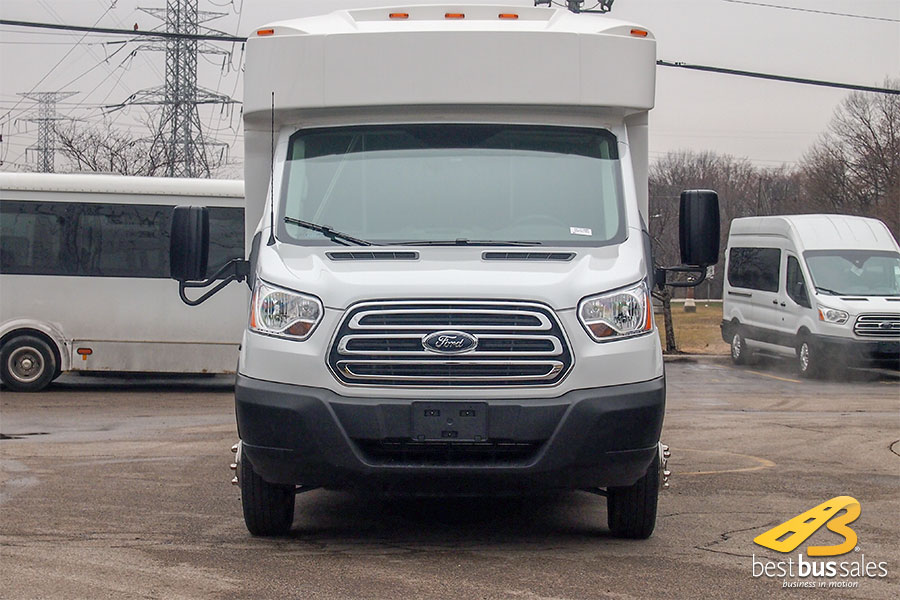

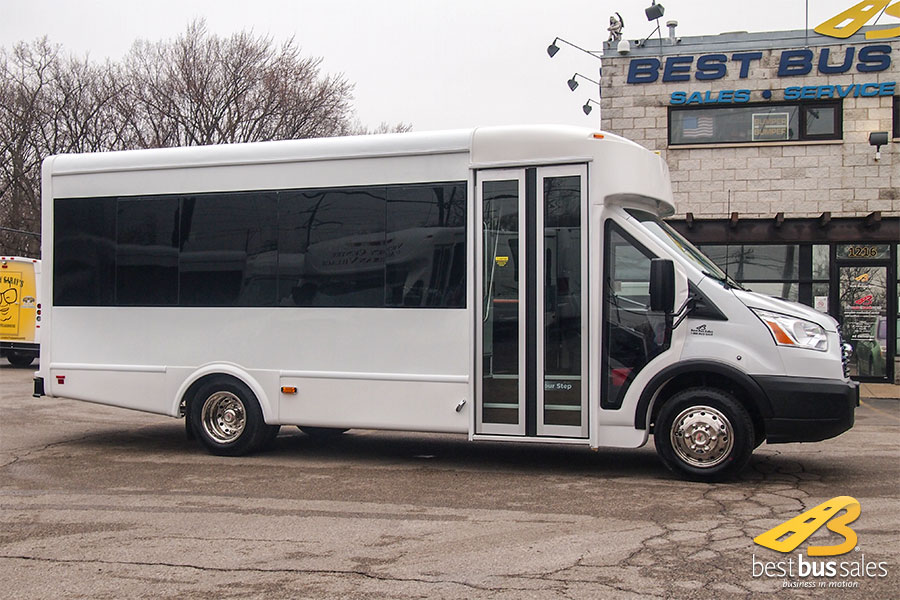

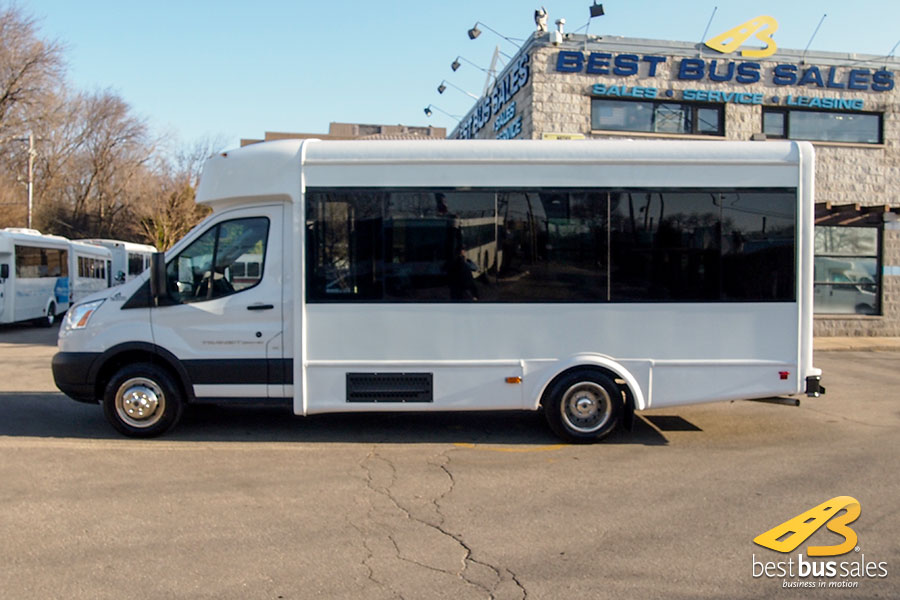

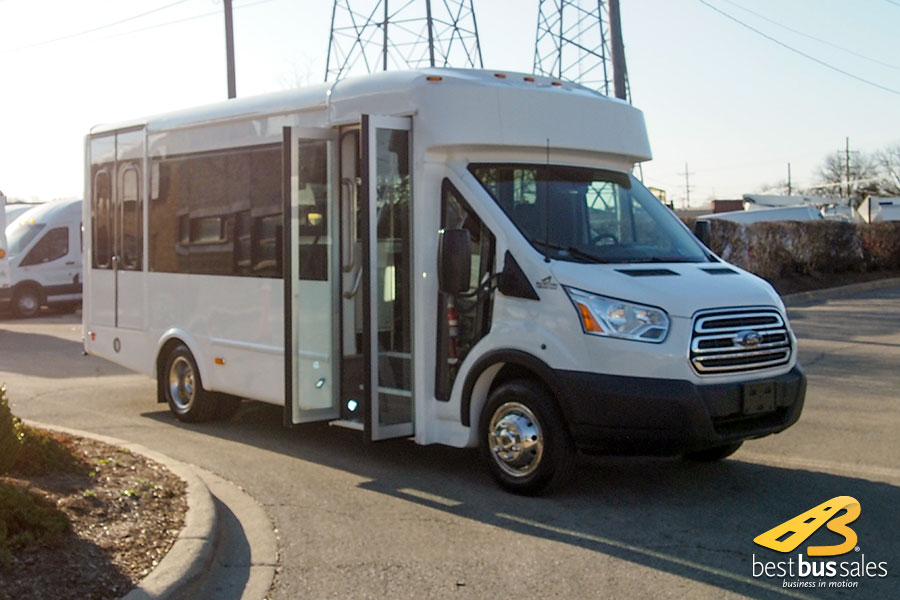

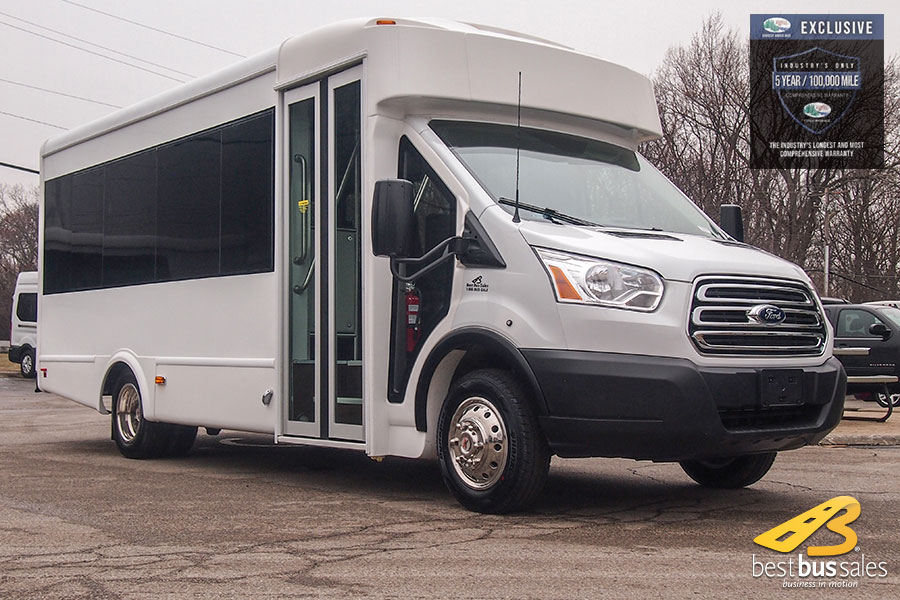

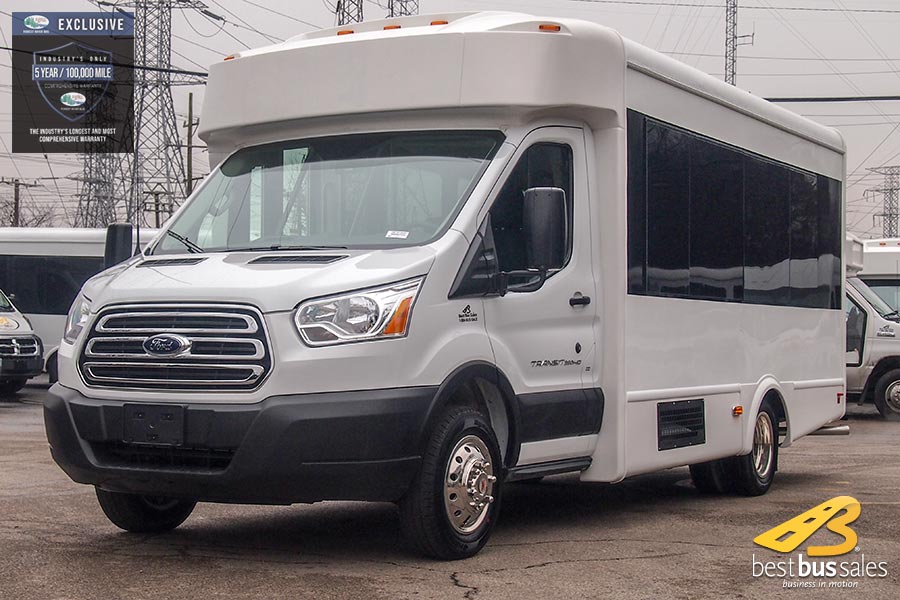

The Commute is a comfortable, durable steel frame, narrow-body shuttle built on the Ford® Transit® chassis which provides greatly improved fuel mileage compared to previous models.

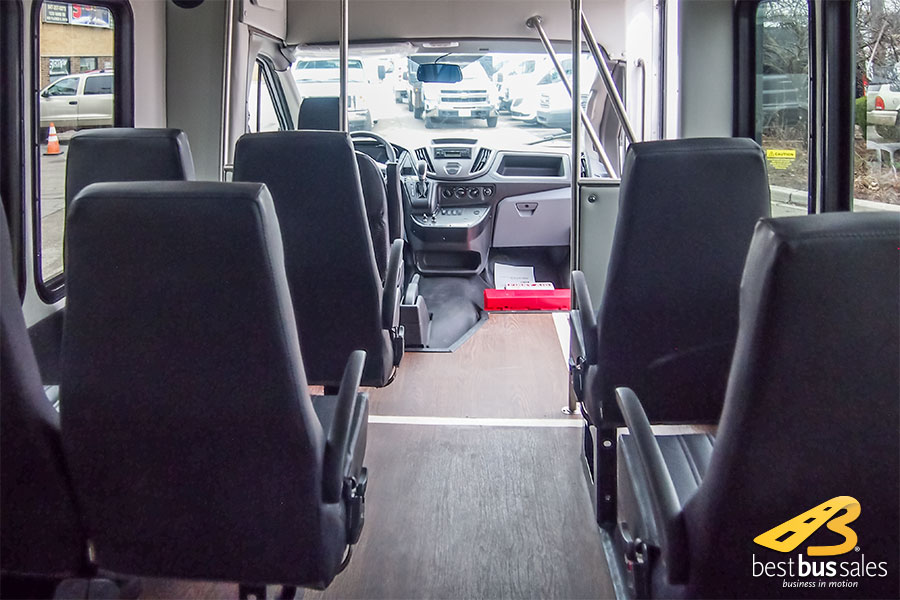

The Commute has multiple applications accommodating up to 16 ambulatory or 3 wheelchair locations.
The Commute is a comfortable, durable steel frame, narrow-body shuttle built on the Ford® Transit® chassis providing improved fuel mileage. With multiple applications, Commute accommodates up to 16 ambulatory or 3 wheelchair locations.
5 Year/100,000 Mile
Manufacturer Warranty
Commute Specifications
- Maximum Passenger Capacity
(Subject to Option Content & Weight Analysis) - 21' = 13 (including driver)
23' = 17 (including driver) - Overall Length
(with Standard Bumper) - 138" wheelbase: 262"
156" wheelbase: 280" - Wheelbase
- 138" (21')
156" (23') - GVWR:
- 10,360
- Overall Width:
- 84" (excluding mirrors & flares)
- Interior Width:
- 80"
- Aisle Width:
- 21" (2-1 seating)
- Overall Height:
- 112" (excluding hatch, roof ac, etc.)
- Interior Height:
- 78–1/2"
- Floor Height from Ground:
- 28–1/4"
- Step Height from Ground:
- 10–1/2"

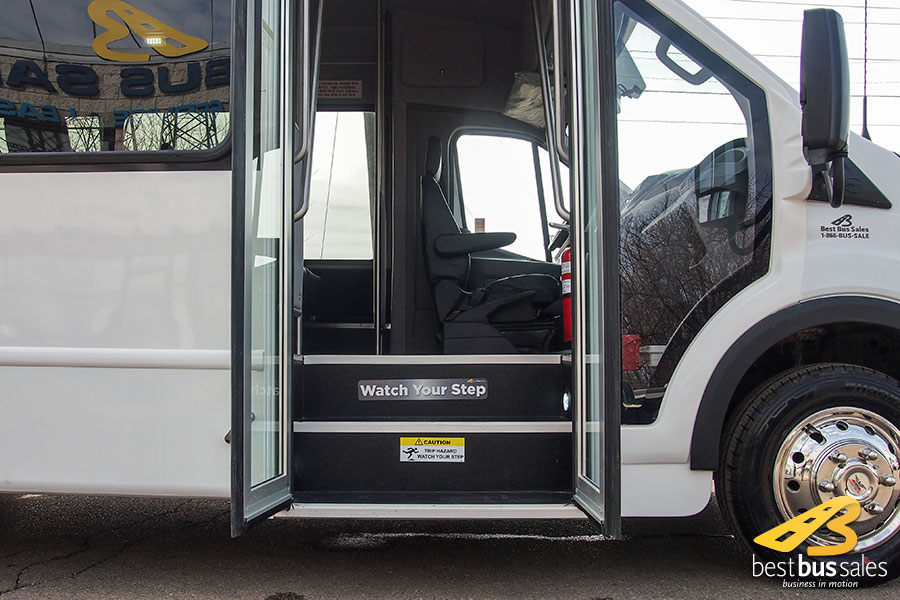

- 30" Entry Door:
- 30" × 82–1/2" clear opening
- 40" Entry Door:
- 40" × 82–1/2" clear opening
- Riser Height:
- 8–3/4"
- Tread Depth:
- 9–1/2"
- Step Width:
- 34" (30" entry)
44" (40" entry) - Single Wheel Chair Door:
- 46–3/8" × 69–1/4" clear opening
- Double Wheel Chair Door:
- 44–3/4" × 69–1/4" clear opening

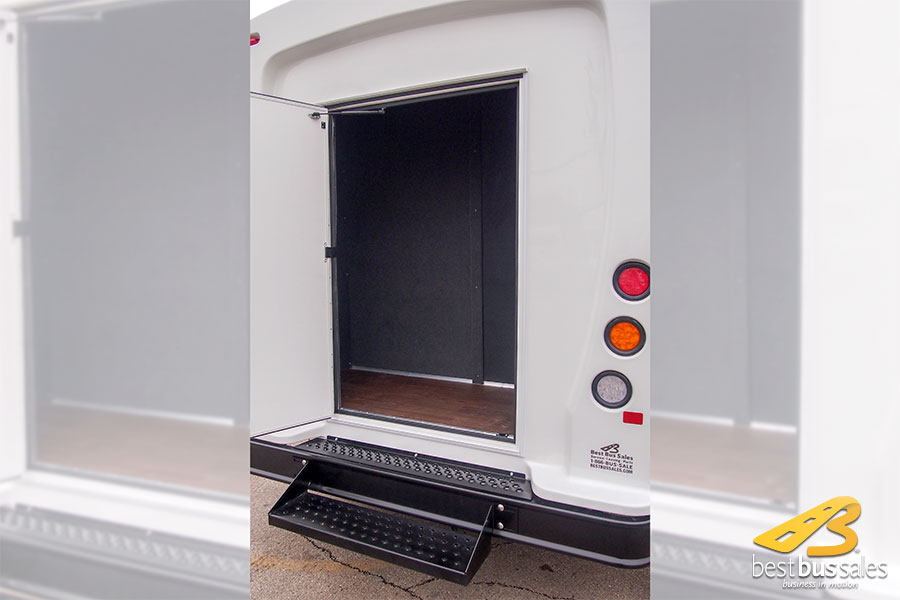

- Rear Door:
- 33" × 62–1/2" clear opening
Dimensional data subject to change without notice. Optional equipment may change these standards.

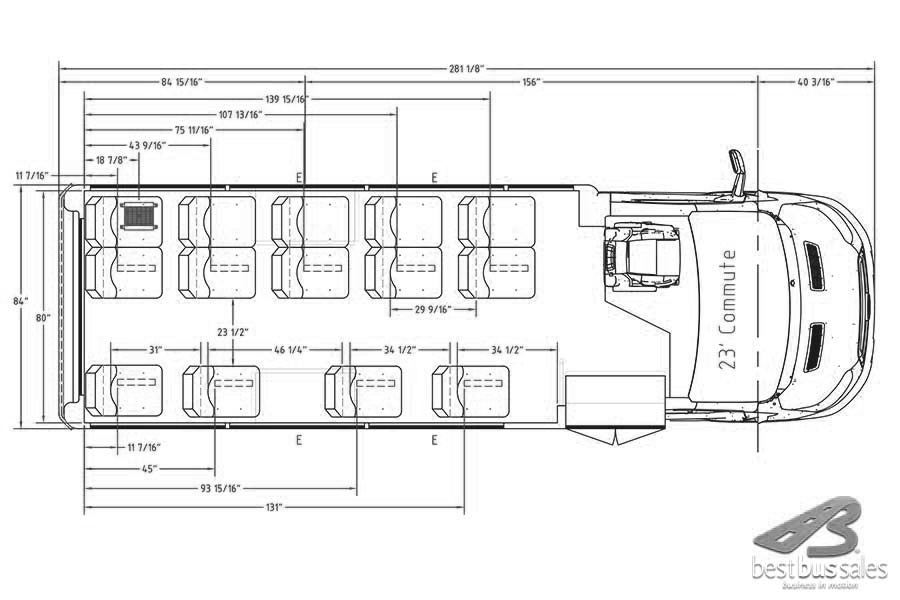

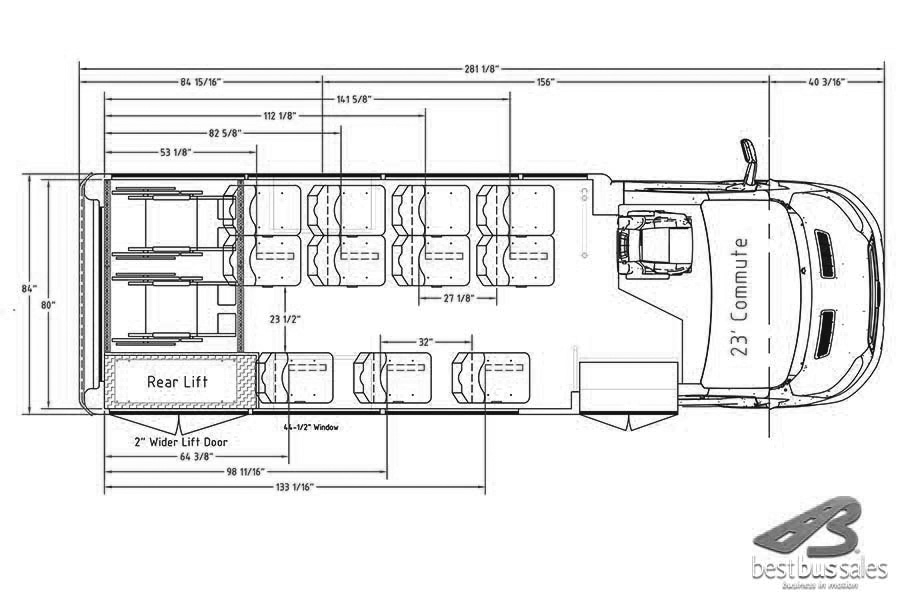

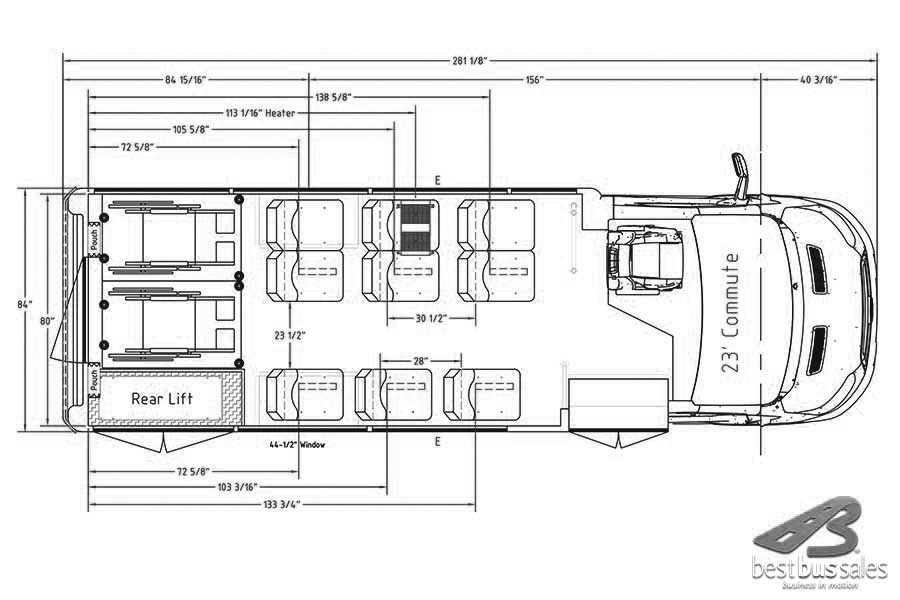

Commute Floor Plans
